Dixon BSVD-HC100B375 BSV 3A Sam Val 2 Port

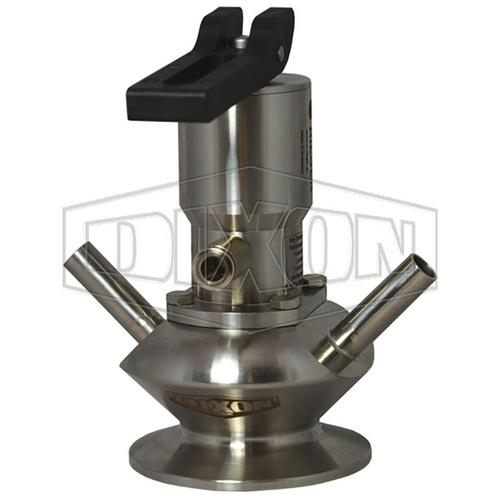

Dixon, BSVD-HC100B375, BSV-Series 3A Sam Val 2 Port, 1 - 1-1/2" Triclamp 3/8" Weld

The BSV-Series sample valve allows easy and safe sampling of liquids from closed systems such as vessels and pipelines. These valves are located in the pharmaceutical, bio-pharmaceutical, biochemical, cosmetic, food, dairy and beverage markets.

Features:

• Valve body made from solid bar
• No dead space
• Drainable
• Connections suitable for orbital welding
• Hermetically sealed against environment
• Optimum cleanability
• Change of seals without special tools
• Long life of the PTFE-bellows
• Low spare part costs

Materials:

• In product contact material: 1.4404/AISI316L
• Non product contact material: 1.4301/AISI304
• Product contact seals: PTFE Bellows
• Wetted product surfaces: Ra <= 32 (optional surface finishes available)
• Non product contact surfaces: Ra <= 63
