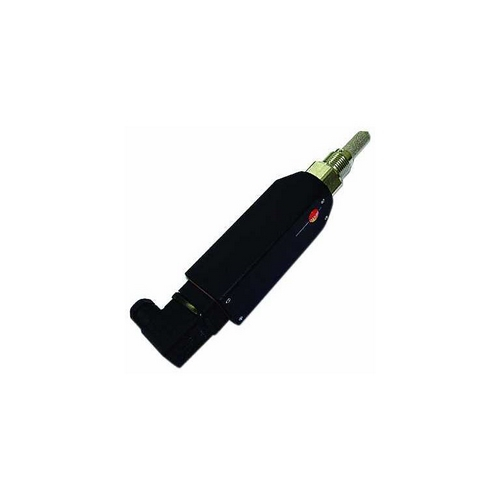

0555 6742, 6742 - Dewpoint transmitter
Testo 6742 dewpoint transmitter to -45 °C, without display, process connection NPT 1/2, analog output 4 to 20 mA, optional alarm plug with 2 switching outputs (sold separatly).
Features:
- Dewpoint transmitter with a measuring range of -45 °C to +30 °C and NPT1/2 thread
- Testo polymer humidity sensor with a high degree of accuracy and long-term stability
- Freely scalable analog output (4 to 20 mA) and optional alarm plug with 2 integrated switching outputs
Air, compressed air, and gases are used in all areas of industry. Humidity and moisture are generally undesirable because they can cause damage or impair the quality of the end product. The use of measuring and control technology is recommended, in order to monitor humidity in the network and prevent damage.The testo 6742 dewpoint transmitter was designed specifically for measuring trace humidity in compressed or dry air. It boasts a polymer humidity sensor which features a high degree of accuracy and long-term stability.
Technical advantages offered by the testo 6742 dewpoint transmitter
- High accuracy: the testo 6742 dewpoint transmitter uses the Testo polymer sensor to measure humidity with a high degree of precision – up to ±1 K at 0 °C (+32 °F)
- Scalable analog output: the dewpoint transmitter converts the measured values into a standardized electrical signal, whereby the analog output can be scaled as required (4 to 20 mA)
- Alarm plug with 2 integrated switching outputs (optional): use the switching contact plug for MAX monitoring (sold separatly)
- Practical format: the testo 6742 dewpoint transmitter features a compact and user-friendly design (e.g. with a housing that can be rotated by 350°)
Use the dewpoint transmitter to prevent damage (e.g. in refrigeration dryers or membrane dryers). This can save you a considerable amount of money, because if the quality of the end product is impaired in any way, it can prove costly. The cost of running adsorption dryers can also be reduced: accurate humidity-controlled chamber activation precisely adjusts the use of regenerated air to meet requirements – not at a preset time increment, which often creates unnecessary, excess consumption of regenerated air.
Delivery Scope
testo 6742 dewpoint transmitter to -45 °C with polymer humidity sensor, without display, with process connection NTP1/2 thread, analog output 4 to 20 mA and optional alarm plug with 2 switching outputs (sold separatly)
