Bradley Corp S19-324D1DHT Class I, Division 1 Explosion-Proof Emergency Signaling System

  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

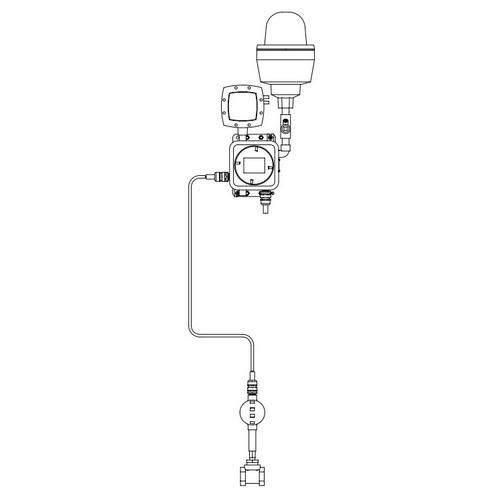

S19-324D1DHT, Class I, Division 1 Explosion-Proof Emergency Signaling System

System can easily be connected to most combination drench shower/ eyewash or drench shower units (1-1/4" NPT inlet piping and 30 GPM water inlet source). If fixture is top-supplied, adequate space must be provided for vertical orientation of sensor. Consult installation manual for specific requirements. Remote location hookup possible by using the contacts in the flow switch junction box or central control box.

Features

  • Class I, Division 1, Groups C & D, Explosion Proof, T-Code: T6
  • Automatic, Audible and Visual System
  • Designed to Meet NEMA 4X
  • Easily Connected to Drench Showers or Combination Units
  • For Indoor and Outdoor Applications
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Central ControlEmergency fixture signaling system operates from one central control board. The central control offers several different easy to connect inputs and outputs, allowing for direct connection to a building management system and runs on a safe, 24v system. Electrical components are contained with a NEMA 4X enclosure.
Remote WiringRemote location hookup possible by using contacts in the central control board or contacts in the flow switch junction box.
Horn SoundPiezo fast beep sound. 108 dB at 2 feet cuts through ambient noise.
Signal LightFlashing signal light with corrosion resistant enclosure. Available in amber lens.
VoltageUniversal AC Input: 90-264 AC, 50-60 Hz. Max 70 Watts. Max 3.0 Amps.
Flow Switch ActivationWatertight and completely assembled for easy hookup to signaling system. Double pole, double throw flow switch in brass construction.
Electrical Connection3' and 6' flexible conduit cables with four cable glands provided for electrical connections to flow switch and power supply.
Pipe Size1-1/4" NPT supply for drench or combination showers.
Mountingincludes bracket to mount to heat trace unit
Notes

***

warningWARNING:This product can expose you to chemicals including Lead, which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Details
Central ControlEmergency fixture signaling system operates from one central control board. The central control offers several different easy to connect inputs and outputs, allowing for direct connection to a building management system and runs on a safe, 24v system. Electrical components are contained with a NEMA 4X enclosure.
Remote WiringRemote location hookup possible by using contacts in the central control board or contacts in the flow switch junction box.
Horn SoundPiezo fast beep sound. 108 dB at 2 feet cuts through ambient noise.
Signal LightFlashing signal light with corrosion resistant enclosure. Available in amber lens.
VoltageUniversal AC Input: 90-264 AC, 50-60 Hz. Max 70 Watts. Max 3.0 Amps.
Flow Switch ActivationWatertight and completely assembled for easy hookup to signaling system. Double pole, double throw flow switch in brass construction.
Electrical Connection3' and 6' flexible conduit cables with four cable glands provided for electrical connections to flow switch and power supply.
Pipe Size1-1/4" NPT supply for drench or combination showers.
Mountingincludes bracket to mount to heat trace unit
Note

Note: Please read description carefully. Do not base your order on the picture presented.
