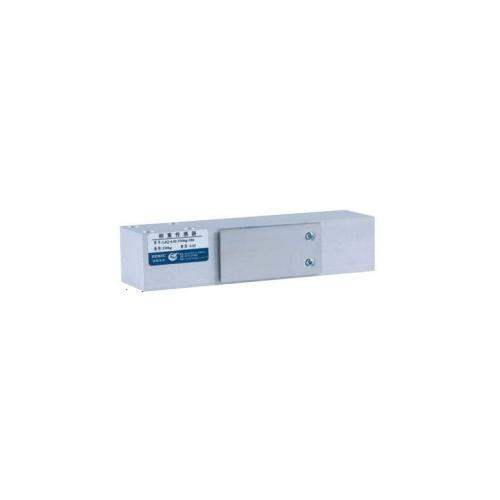

Brecknell, L6Q-C3-100KG, L6Q 100KG Aluminum Single Point Metric Load Cell

Features

Capacity: 50kg
Max. platform size: 400mm x 400mm
NTEP Cert. No.: CC11-104
High accuracy
PTB Approval No.: D09-07.06
L6Q load cells are available in the capacities 50kg~250kg
Aluminum construction with parallel beam
Silicon adhesive sealed, stainless steel cover, surface anodized and anti-corrosion
Integral structure and easy installation
Suitable for electronic pricing scales, platform scales and other electronic weighing devices

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Details
Capacity	kg	100
Accuracy		C3
Approvals		OIML R60 C3
Maximum Number of Verification Intervals	Nmax	3000
Minimum Load Cell Verification Interval	Vmin	Emax/7000
Combined Error	(%FS)	≤±0.020
Creep	(%FS/30min)	≤±0.0167
Temperature Effect on Sensitivity	(%FS/10°C)	≤±0.0175
Temperature Effect on Zero	(%FS/10°C)	≤±0.020
Output Sensitivity	(mV/V)	2.0±0.02
Input Resistance	(Ω)	406±6
Output Resistance	(Ω)	350±3
Insulation Resistance	(MΩ)	≥5000 (50VDC)
Zero Balance	(%FS)	2
Temperature, Compensated	(°C)	-10~+40
Temperature, Operating	(°C)	-35~+65
Excitation, Recommended	(V)	5~12 (DC)
Excitation, Max	(V)	18 (DC)
Safe Overload	(%FS)	120
Ultimate Overload	(%FS)	150
Corner Correction		0.02% load value/100mm

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Details
Capacity	kg	100
Accuracy		C3
Approvals		OIML R60 C3
Maximum Number of Verification Intervals	Nmax	3000
Minimum Load Cell Verification Interval	Vmin	Emax/7000
Combined Error	(%FS)	≤±0.020
Creep	(%FS/30min)	≤±0.0167
Temperature Effect on Sensitivity	(%FS/10°C)	≤±0.0175
Temperature Effect on Zero	(%FS/10°C)	≤±0.020
Output Sensitivity	(mV/V)	2.0±0.02
Input Resistance	(Ω)	406±6
Output Resistance	(Ω)	350±3
Insulation Resistance	(MΩ)	≥5000 (50VDC)
Zero Balance	(%FS)	2
Temperature, Compensated	(°C)	-10~+40
Temperature, Operating	(°C)	-35~+65
Excitation, Recommended	(V)	5~12 (DC)
Excitation, Max	(V)	18 (DC)
Safe Overload	(%FS)	120
Ultimate Overload	(%FS)	150
Corner Correction		0.02% load value/100mm

Note: Please read description carefully. Do not base your order on the picture presented.
