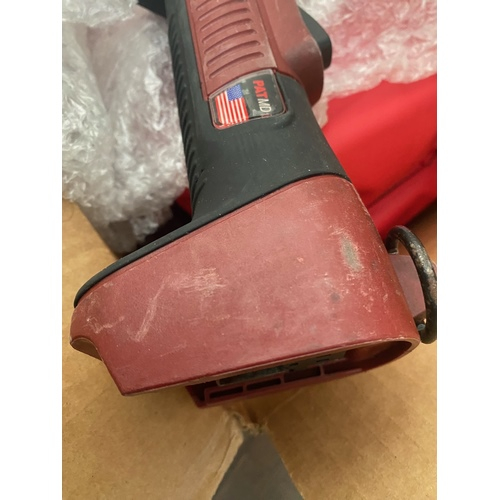

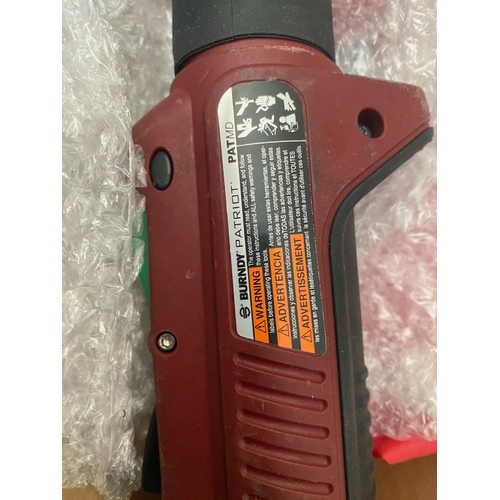

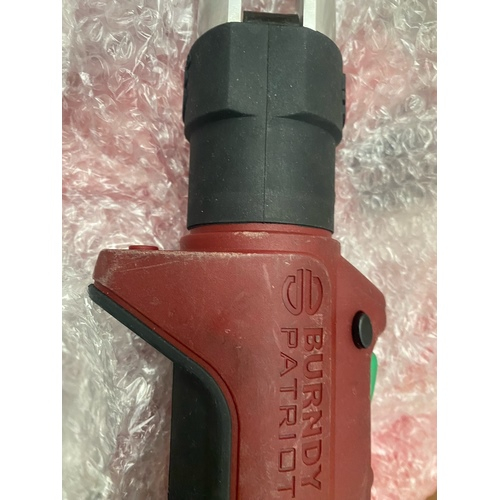

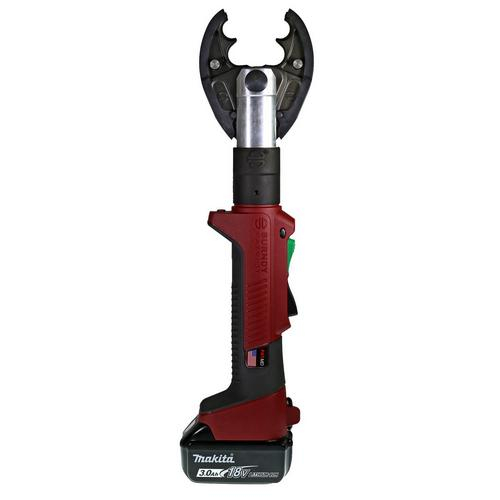

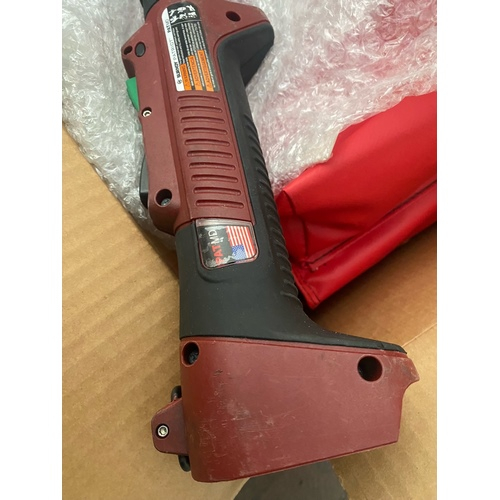

Burndy LLC PATMD68LW-UD Patriot 6-Ton In-Line O/D3 Crimper, 120V, 3.0Ah

Burndy, PATMD68LW-UD, Patriot 6-Ton In-Line Light Weight O & D3 Crimper with 120V Charger, 3.0Ah Battery

Includes:

• Tool with D3/O Die Grooves on Jaw

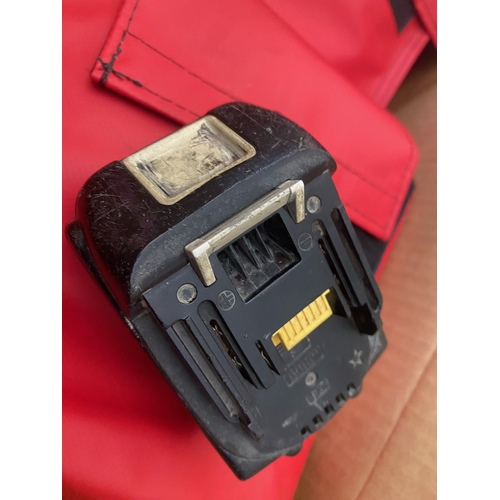

• (2) 3.0 Ah Li-Ion Batteries

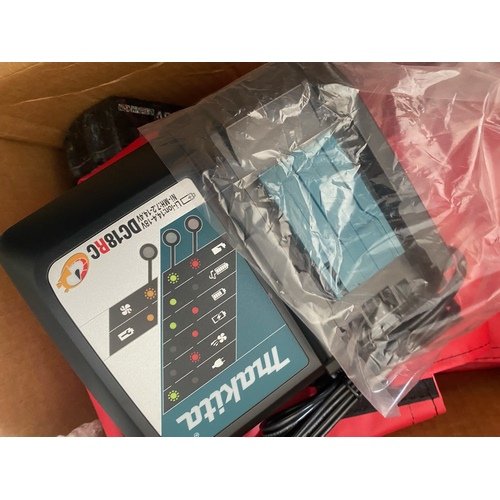

• Charger (120V-AC)
• Tool Bag
• User Instructions

Features:

• Light-weight jaw design reduces weight and improves balance.
• Scissor-action crimp/cutter jaws simplify the process of crimping splices or making mid-span cuts.
• Locking tabs retain the jaws in the tool when the jaw release pin is out.
• Jaw release pin allows for quick jaw change-over and user safety.
• Led worklight illuminates dimly-lit work areas.
• Coated pcb protects the electronics from dust,dirt and humidity.
• 350deg rotatable headallows the tool to be used in multiple positions and in hard-to-reach areas.
• Large triggers and hand grip area allow for easy operation and comfort while wearing gloves.
• Trigger lock safety switch helps prevent accidental operation of the tool when engaged.
• Manual drain trigger provides total control of the crimping process.

Note: "D3" die groove is used with some common large H-frame connectors (YHD- series and others), but it more commonly allows for the use of interchangeable "W"- type dies for crimping various wire sizes from #8 AWG to 500 Kcmil. "O" die groove is used with many common small h-frame connectors (YHO - series).

	14% lighter 11% smaller Perfectly balanced for ease of use and comfort Offering unrivaled ergonomics 350º Rotatable Head
	Newly redesigned, robust and interchangeable jaws Robust and reliable INFINITY DRIVE® transmission FAST patented high-speed hydraulic pump system Protected electronic circuitry to work in severe weather PATMD-LW leads the industry in performance, speed, and dependability Enhanced Power with multi-Ah Capability
	Locking tabs to retain jaw in place when changing out Large on/off triggers Enhance hand grip area to prevent slippage Safety switch integrated into the trigger LED Light
