Options and Related Products

Dimensions:: Dimensions: 85mm x 125mm

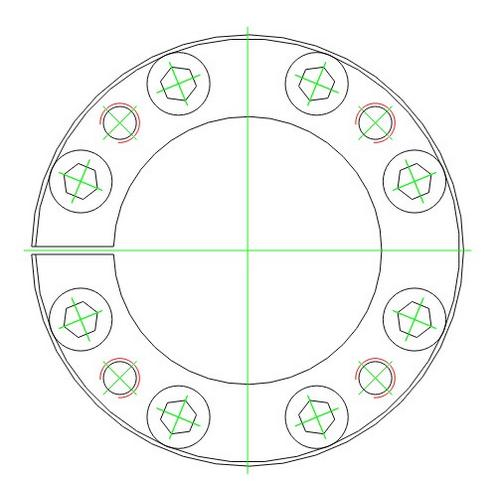

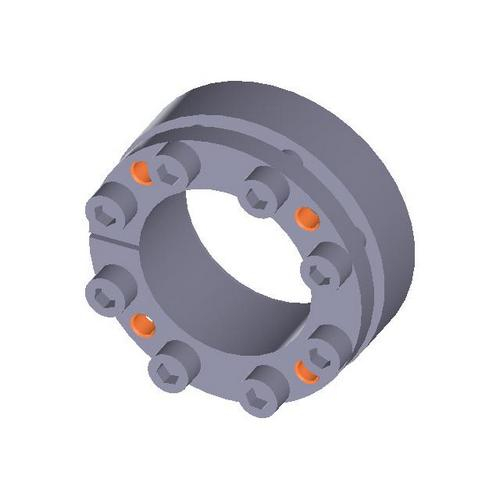

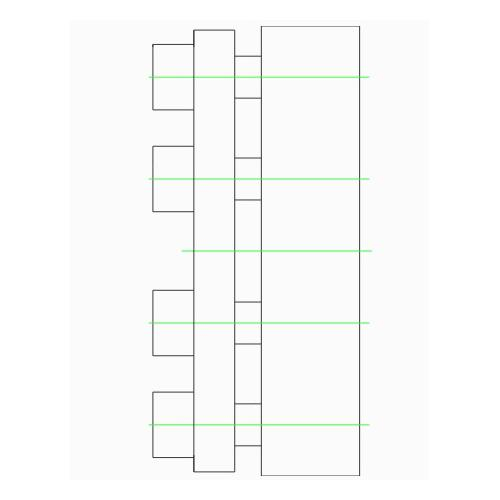

C123M-85X125, Series C123 Locking Assembly 85mm x 125mm

Single-taper, self-centering design without mounting flange for use in through-bored components. Mounted component moves axially during installation.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Shaft Size	85 mm
d	3.346 in
D	4.921 in
L	0.945 in
L1	1.201 in
L2	1.594 in
L3	1.988 in
M_t	4769 ft-lbs
F_ax	34204 lbs.F
P_s	28693 psi
P_h	19511 psi
D_N¹	7.829 in
Locking Screws Quantity	9
Locking Screws Size	M10 x 30
M_a-Locking Screws	51 ft-lbs
Hub Machining Tolerance	+.003 in
Shaft Machining Tolerance	-.002 in
Item Weight	4.50 lb

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Shaft Size	85 mm
d	3.346 in
D	4.921 in
L	0.945 in
L1	1.201 in
L2	1.594 in
L3	1.988 in
M_t	4769 ft-lbs
F_ax	34204 lbs.F
P_s	28693 psi
P_h	19511 psi
D_N¹	7.829 in
Locking Screws Quantity	9
Locking Screws Size	M10 x 30
M_a-Locking Screws	51 ft-lbs
Hub Machining Tolerance	+.003 in
Shaft Machining Tolerance	-.002 in
Item Weight	4.50 lb

Note: Please read description carefully. Do not base your order on the picture presented.
