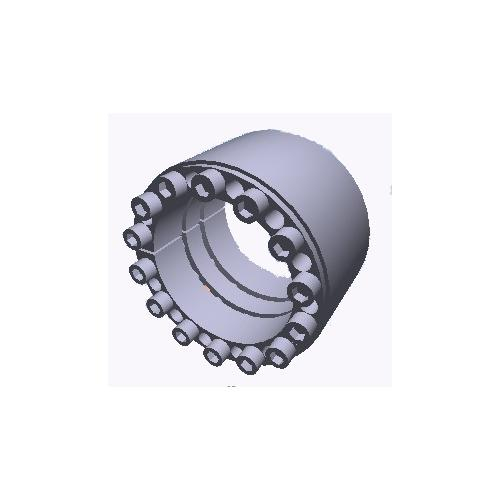

Climax Metal C405M-140X190 C405M-Series Locking Assembly

Dimensions: 140mm x 190mm
  • Brand Climax Metal
  • Part # C405M-140X190
  • Model # C405M-Series
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Dimensions:
Dimensions: 140mm x 190mm

Climax Metal, C405M-140X190, C405M-Series Locking Assembly - 140mm x 190mm

Features:

  • Wide, shallow taper, self-centering design for use in through-bored components with highest torque and/or bending requirements.
  • Mounted component remains fixed axially during installation.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews

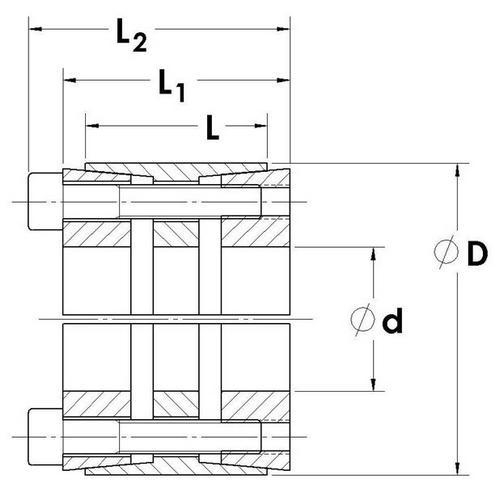

Shaft Size140 mm
d5.512 in
D7.480 in
L4.094 in
L14.567 in
L25.118 in
Mt49090 ft-lbs
Fax213751 lbs.F
Ps31106 psi
Ph22920 psi
DN113.12 in
Locking Screws Quantity14
Locking Screws SizeM14 x 90
Ma-Locking Screws170 ft-lbs
Hub Machining Tolerance+.003 in
Shaft Machining Tolerance-.003 in
Item Weight22.50 lb
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Shaft Size140 mm
d5.512 in
D7.480 in
L4.094 in
L14.567 in
L25.118 in
Mt49090 ft-lbs
Fax213751 lbs.F
Ps31106 psi
Ph22920 psi
DN113.12 in
Locking Screws Quantity14
Locking Screws SizeM14 x 90
Ma-Locking Screws170 ft-lbs
Hub Machining Tolerance+.003 in
Shaft Machining Tolerance-.003 in
Item Weight22.50 lb
Note

Note: Please read description carefully. Do not base your order on the picture presented.
