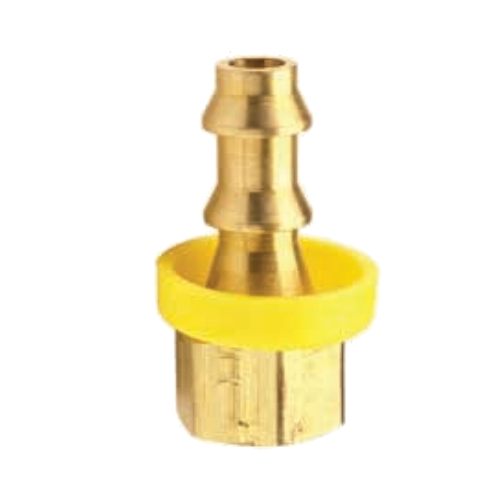

Dixon 2920407C Female SAE Inverted Flare Rigid x Hose Barb

2920407C, 1/4" Tube OD x 1/4" Hose ID Female SAE Inverted Flare Rigid x Hose Barb

Barb Specifications

• Number of Barbs: 2
• Barb Length:.77"

Installation

• Assembly Instructions:
  • 1. Trim hose end with smooth square cut.
  • 2. Lubricate either push-on fitting, hose or both.
  • 3. Insert push-on fitting into hose until first barb is in hose.
  • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.

Instructions

• Disassembly instructions:
  • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
  • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.

Note

• No hose clamps or ferrules are needed

Safety Notes

• Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
• Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
