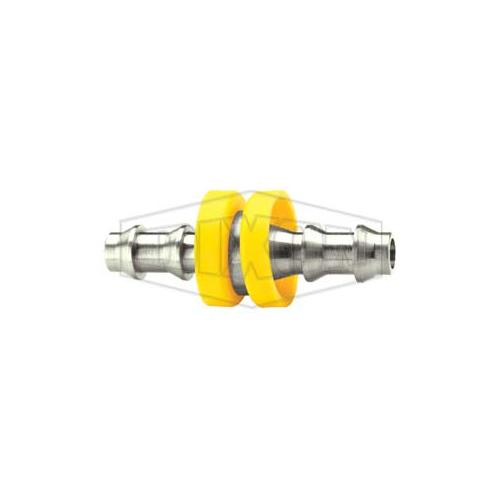

Dixon 2960808SS 1/2" , 303 SS, Push-On Hose Mender

Dixon Valve, 1/2" , 303 SS, Push-On Hose Mender

Specifications:

• Number of Barbs: 2
• Barb Length: 1.02"

Installation:

• Assembly Instructions:
• 1. Trim hose end with smooth square cut.
• 2. Lubricate either push-on fitting, hose or both.
• 3. Insert push-on fitting into hose until first barb is in hose.
• 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.

Instructions:

• Disassembly instructions:
• 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
• 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.

Note:

• No hose clamps or ferrules are needed

Safety notes:

• Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
• Lok-On fittings will properly grip Lok-On hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
• WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
