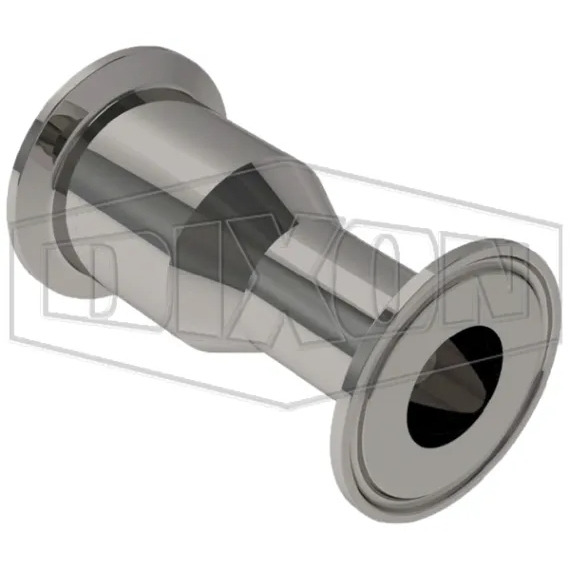

Dixon 2221CBB400250F1 BioPharm Clamp SF1 Concentric Reducer

Dixon Valve, 2221CBB400250F1, BioPharm 4" x 2-1/2" Clamp x Clamp SF1 Concentric Reducer

Features:

• All fittings are manufactured to meet the latest edition of the ASME BPE
• International Standard, Bioprocessing Equipment.
• 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
• PL Finish - SF1 (OD=32R a - ID=20R a)

Applications:

• High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing, and beverage markets

Note:

• Product markings per ASME BPE 2016 DT-10.1
• Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
• Per the specification, the size of the fitting may limit the space for markings. When that occurs, not all markings are included.
• The part number will describe the part configuration and size.
• MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification, each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
