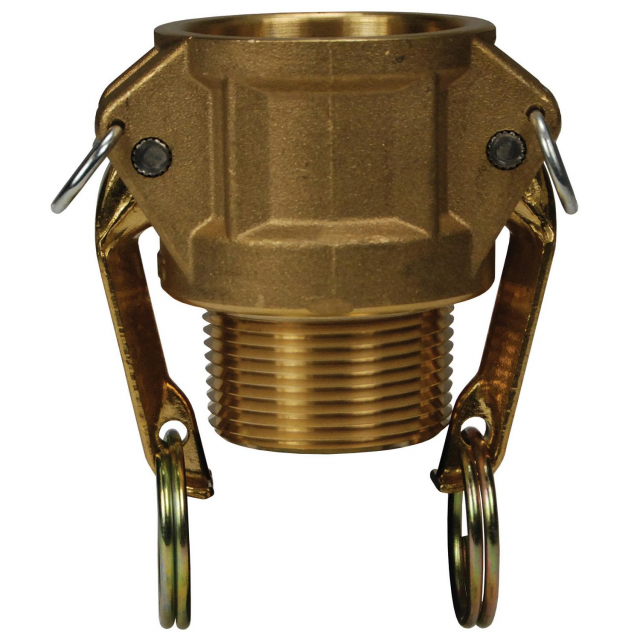

Dixon G125-B-BR Brass Type B Coupler x Male NPT

Dixon, G125-B-BR, 1-1/4" Forged Brass Global Cam & Groove Type B Coupler X Male NPT

Applications

• Designed for use with liquids

Specifications

• Designed to interchange with all products produced to A-A-59326D

Features

• Made to Dixon specifications and branded Dixon

Construction

• Buna Seals

How it works

• To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
• Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Safety notes

• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed.
• WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
