Dixon R26-04RG - 185 SCFM Standard Regulator R26: Heavy Duty Depot

GET $5 OFF

ON YOUR FIRST PURCHASE
Code: LOVEHEAVY

info@HeavyDutyDepot.com

+1 (838) 222-2023
+1 (718) 504-5719 (Intl.)

The actual item's colors maybe different from what is shown on the product picture.

Options and Related Products

Gauge:: Gauge: Yes
Flow Rate:: Flow Rate: 185 SCFM

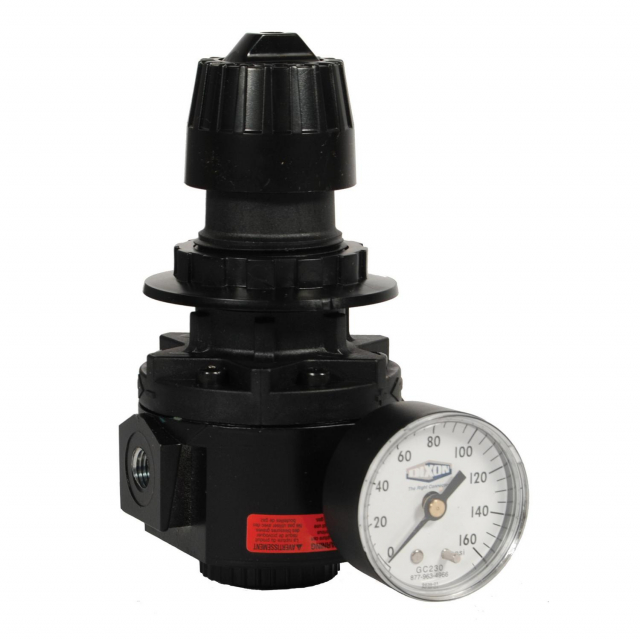

Dixon, R26-04RG, Wilkerson 185 SCFM Standard Regulator R26, with Gauge

Use

To increase regulated pressure, pull adjusting knob up and turn clockwise.
To reduce pressure, turn knob counter clockwise.

Features

0-125 PSI adjusting range
Non-rising push/pull locking adjustment knob
Panel mount nut standard
Excellent flow characteristics
One 1/4" NPT gauge port standard, can be used for additional outlet ports
Supplied with a gauge

Installation

Can be installed with the adjusting knob in any position

Safety notes

FRL's are designed for air service only, unless otherwise indicated.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Includes	With Gauge
Port	1/2"
Maximum Operating Pressure	300 PSIG (20.7 Bar)
Temperature Range	32°F to 150°F (0°C to 65.5°C)
Flow	185 SCFM
Weight Lb	2.5200

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Includes	With Gauge
Port	1/2"
Maximum Operating Pressure	300 PSIG (20.7 Bar)
Temperature Range	32°F to 150°F (0°C to 65.5°C)
Flow	185 SCFM
Weight Lb	2.5200

Note: Please read description carefully. Do not base your order on the picture presented.
