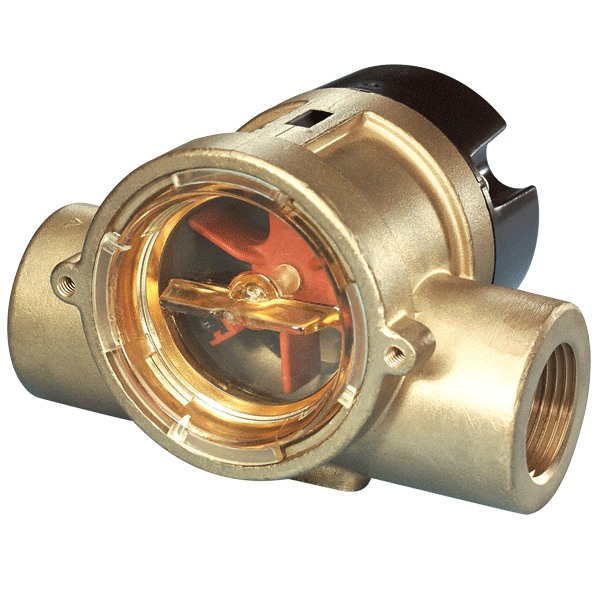

Dwyer, SF2-224, Series SF2 Sight Flow Meter, 5.0-30.0 GPM, 4.5-24 VDC, 3/4" FNPT, Pulse Output
Visual Flow Confirmation, Brass Body
Series SF2 Sight Flow Meters combine visual confirmation of flow. The brass, uni-body construction, one piece composite rotor, and ceramic shaft delivers durability with broader chemical, temperature, and pressure capabilities. For specific flow setpoint switching, select SF2-1 meters with a SPDT relay output. Setpoints are fully adjustable over the specified flow range. The dynamic operation of the rotor guards against jamming and false actuation. For flow rate monitoring or metering applications, select SF2-2 meters with a pulse output proportional to the rate of flow. The 4.5 to 24 VDC pulse output is compatible with most digital logic families.
Approvals
CE Approval
