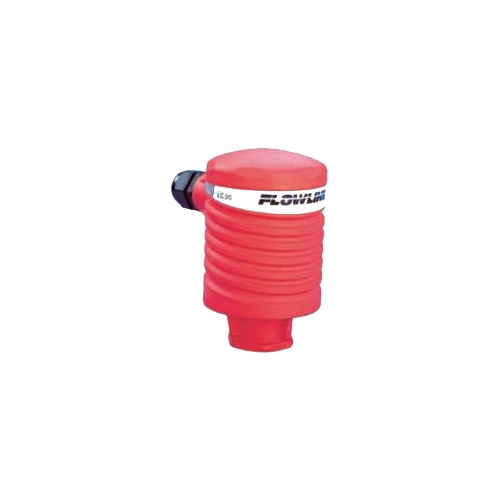

Flowline LC30-1051-E Thermo-Flo 240VAC Compact Flow Controller

Strobe: No, Mount: Metric
  • Brand Flowline
  • Part # LC30-1051-E
  • Model # Thermo-Flo
  • Condition
    Brand New
Buy in Bulk 4 Applicable Promotion(s)
Show All

  • Buy 10 pcs, get 5% off

    Save 5% each on Flowline LC30-1051-E Thermo-Flo 240VAC Compact Flow Controller when you purchase 10 or more

  • Buy 5 pcs, get 4% off

    Save 4% each on Flowline LC30-1051-E Thermo-Flo 240VAC Compact Flow Controller when you purchase 5 or more

  • Buy 3 pcs, get 3% off

    Save 3% each on Flowline LC30-1051-E Thermo-Flo 240VAC Compact Flow Controller when you purchase 3 or more

  • Buy 2 pcs, get 2% off

    Save 2% each on Flowline LC30-1051-E Thermo-Flo 240VAC Compact Flow Controller when you purchase 2 or more

Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Strobe:
Strobe: No
Mount:
Mount: Metric

Flowline, LC30-1051-E, Thermo-Flo 3/4" Metric 240VAC Compact Flow Controller

Features:

  • Fail-safe relay control of pumps or valves with 0-60 second delay.
  • Optional strobe brings immediate attention to flow alarm conditions.
  • Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment.
  • Easy setup with LED indicators for sensor, power and relay status.
  • Invert switch changes relay state from NO to NC without rewiring.
  • Compatible with Flowline liquid and gas flow switch sensors.

Application:

The general purpose flow controller accepts one flow sensor input, and provides one 16A relay for lowflow pump or process protection. The optional flash alarm brings attention to low-flow alarm conditions. Package this flow controller with our liquid or gas flow switch sensors.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews

Supply Voltage:

240 VAC, 50-60 Hz
Consumption:0.25A maximum
Sensor Inputs:four-wire flow switch
Sensor Supply:24 VDC @ 50 mA
LED Indication:Sensor, power & relay
Strobe Type:N/A
Strobe Flash:N/A
Contact Type:SPDT relay
Contact Rating:250 VAC @ 16A
Contact Output:Selectable NO / NC
Contact Delay:0-60 seconds
Contact Latch:Selectable ON / OFF
Ambient Temp.:F: -40° to 158°, C: -40° to 70°
Enclosure Rating:NEMA 4X (IP65)
Enclosure Mat.:PP, UL94VO
Conduit Entrance:1/2" NPT
Enclosure Mount:3/4" Metric
Classification:General purpose
Compliance:CE, RoHS
Approvals:CSA, LR 79326
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Supply Voltage:

240 VAC, 50-60 Hz
Consumption:0.25A maximum
Sensor Inputs:four-wire flow switch
Sensor Supply:24 VDC @ 50 mA
LED Indication:Sensor, power & relay
Strobe Type:N/A
Strobe Flash:N/A
Contact Type:SPDT relay
Contact Rating:250 VAC @ 16A
Contact Output:Selectable NO / NC
Contact Delay:0-60 seconds
Contact Latch:Selectable ON / OFF
Ambient Temp.:F: -40° to 158°, C: -40° to 70°
Enclosure Rating:NEMA 4X (IP65)
Enclosure Mat.:PP, UL94VO
Conduit Entrance:1/2" NPT
Enclosure Mount:3/4" Metric
Classification:General purpose
Compliance:CE, RoHS
Approvals:CSA, LR 79326
