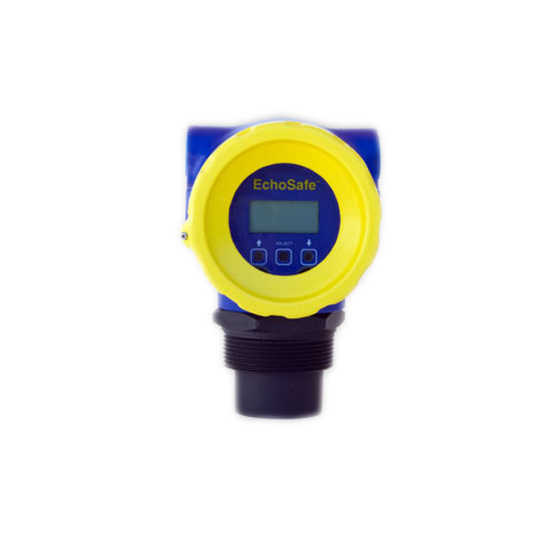

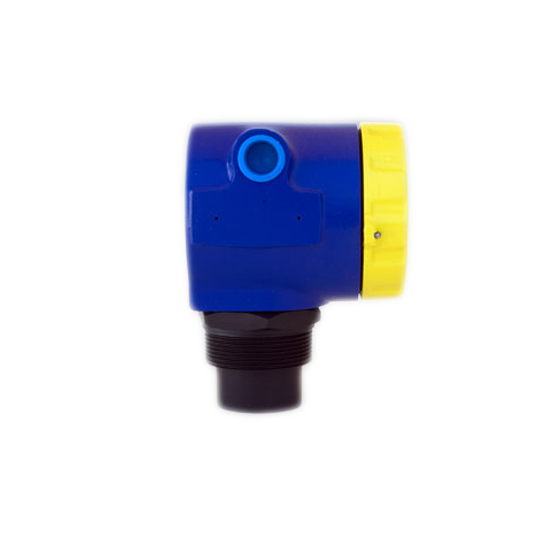

EchoSafe 8" to 26.2' Ultrasonic Level Transmitter
FM approved for hazardous environments, the explosion proof ultrasonic level transmitter provides continuous level measurement 26.2' with a 4-20 mA signal output, and is configured via the integral push button display module. This non-contact liquid level sensor is ideally suited for corrosive, ultrapure, sticky or dirty liquids, and is widely selected for bulk storage, day tank, lift station and process tank level applications located in a classified area.
Features
- Explosion proof level transmitter for use in hazardous areas
- Measurement range 26.2' (8m)
- Configuration is simple via integral push button display module

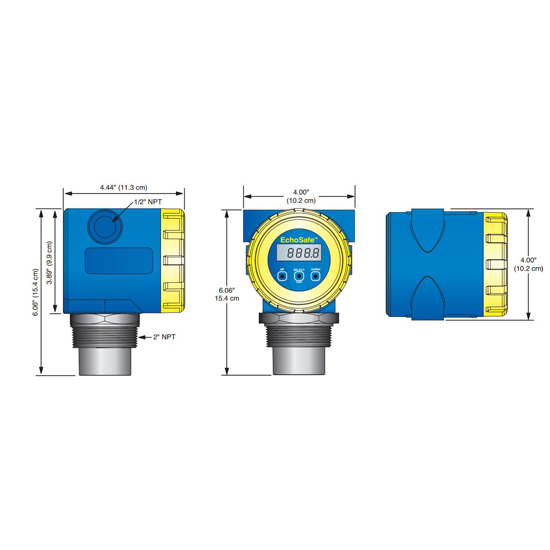

- Type 4X aluminum XP windowed enclosure with dual conduit ports
- LCD display indicates level in inches, centimeters or percent of span
- Narrow 3” beam width for applications with limited measurement space
- Rugged PVDF transducer and process mounting plug for corrosive liquids
- Automatic temperature compensation for accurate measurement
Refined chemicals are the building blocks of modern products from plastic to aspirin, paint to fertilizer and clothing to detergent. Worldwide therearemore than 2900 petrochemical plants in 4300 locations that manufacture refined chemicals from petroleum and hydrocarbon based material. The majority of these manufacturers are located in North America and Europe, but new production facilities are shifting to Austral Asia. Chemical plants are hazardous environments that require explosion proof or intrinsically safe certified instrumentation. Here, an EchoSafe explosion proof ultrasonic level transmitter is installed on the man-way cover of an underground wastewater bulk storage tank. The patented digital signal processing technology features an industry leading 3” beam width that enables installation in close proximity to the 6” suction pipe.
