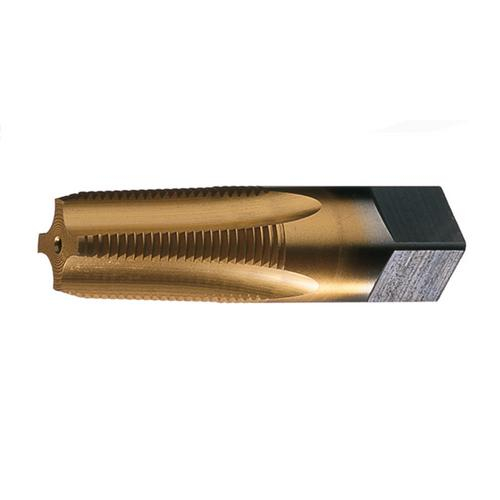

Greenfield Threading, 385536, GT/VTD 1IN-11-1/2NPTF PTT 5FL GP Taper Pipe Tap-TiN

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions
Diameter	1.0000"
Overall Length	3.7500"
Overall Length (Metric)	95.25mm
Tap Standard Projection	0.6780"
Tool Size	1-11.5 NPT
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	NPT
Thread Length	1.7500"
Thread Length (Metric)	44.45mm
Thread Pitch	11.5
Thread Size	1"
Basic Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	5
Surface Condition	TiN
Tap Blank Construction	USCTI Table 311
Tap Chamfer	Semi-Bottoming
Tap Construction	Medium Hook Taper
Tap Ground Threads	Yes
Tap Hook	Medium (5-10)
Tap Interrupted Thread	No
Tap Spiral Point	No
Tap Style	Tapered Pipe Tap
Tap Truncated Threads	No
Tap Type	Pipe Tap
Shank Specifications
Shank Configuration	Straight w/ Square
Shank End	Square
Shank Size	1.1250"
Shank Size (Metric)	28.57mm
Shank Square Length	0.8125"
Shank Square Length (Metric)	20.64mm
Shank Square Width	0.8430"
Shank Square Width (Metric)	21.41mm
Application
Material Application	K: Cast Iron, M: Stainless Steel, N: Non ferrous Metal, P: Steel
Operation Type	Thru Hole

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Dimensions
Diameter	1.0000"
Overall Length	3.7500"
Overall Length (Metric)	95.25mm
Tap Standard Projection	0.6780"
Tool Size	1-11.5 NPT
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	NPT
Thread Length	1.7500"
Thread Length (Metric)	44.45mm
Thread Pitch	11.5
Thread Size	1"
Basic Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	5
Surface Condition	TiN
Tap Blank Construction	USCTI Table 311
Tap Chamfer	Semi-Bottoming
Tap Construction	Medium Hook Taper
Tap Ground Threads	Yes
Tap Hook	Medium (5-10)
Tap Interrupted Thread	No
Tap Spiral Point	No
Tap Style	Tapered Pipe Tap
Tap Truncated Threads	No
Tap Type	Pipe Tap
Shank Specifications
Shank Configuration	Straight w/ Square
Shank End	Square
Shank Size	1.1250"
Shank Size (Metric)	28.57mm
Shank Square Length	0.8125"
Shank Square Length (Metric)	20.64mm
Shank Square Width	0.8430"
Shank Square Width (Metric)	21.41mm
Application
Material Application	K: Cast Iron, M: Stainless Steel, N: Non ferrous Metal, P: Steel
Operation Type	Thru Hole

Note: Please read description carefully. Do not base your order on the picture presented.
