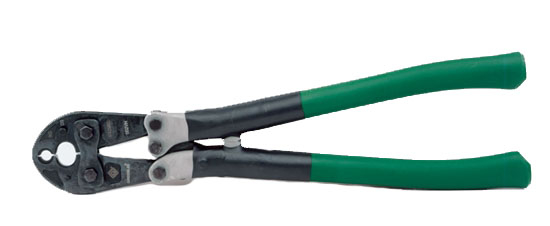

Greenlee Textron 02065 K425BG Crimping Tool with "D3" and "BG" Die Grooves

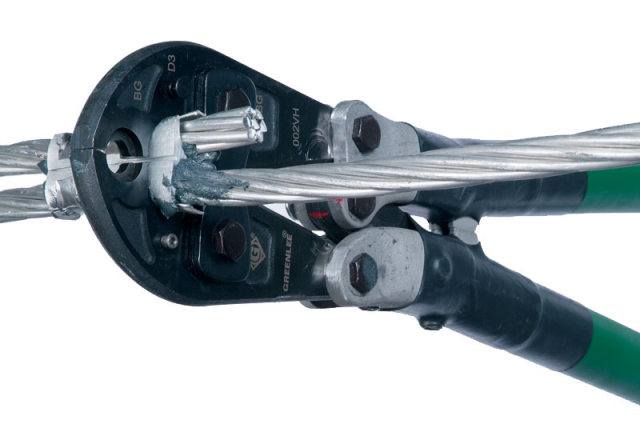

The K425BG Mechanical Crimping Tools are hand-operated tools that use permanent die grooves and/or insertable W-type dies. These tools have two permanent die grooves, either a “BG” or “O”, and a “D3” for distribution tap connectors. The “D3” groove also serves as a seat for W-type die inserts to install additional connector types. The die inserts snap into a permanent “D3” groove easily with one hand and are secured with the spring-loaded, positive lock, die retaining buttons

Features

• Designed for crimping a wide range of overhead service entrance connections, overhead splices, and overhead taps
• Easy-to-use MD-6 type "pop" tool, K425 tools are equipped with D³ die groove and either "BG" or "O" die groove
• K425K tools are equipped with a die groove for Kearney "O" dies and either a 5/8 IN or "O" die groove
• The D³ die groove serves as a die seat for all Greenlee KD6 and industry "W" type dies
• Bent fiberglass handles provide a solid grip, good leverage and better durability than wood
• Low friction-impregnated bushings at pivot joints provide smooth operation and long life
• Complete crimps are assured with an over-center cam mechanism
• Tool can easily be checked visually for proper adjustment and can be adjusted with Allen wrenches

For use on

• Copper taps from #10 solid to #2/0 stranded
• Aluminum/ACSR taps from #14 solid to #4/0 ACSR
• Stirrups from #6 AWG to #4/0 ACSR
• Copper and aluminum code conductor connectors from #6 AWG to #4/0 stranded
• Overhead full tension deadend, full and non-tension splices and terminals from #10 stranded to #4/0 ACSR
• 5/8" and .840" service entrance sleeves
