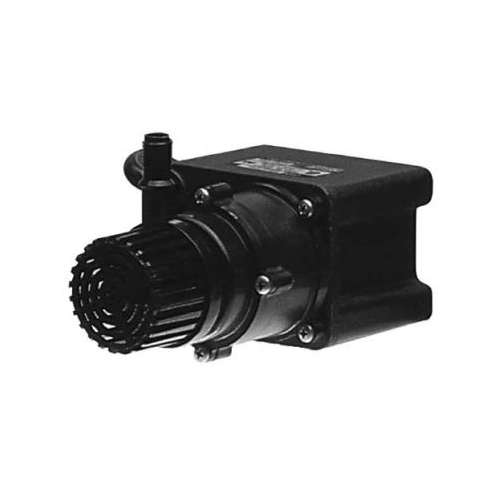

Little Giant 589204 PE-1.5-MDI-SC Magnetic Drive Pump

Little Giant, 589204, PE-1.5-MDI-SC 1/35 hp 5.5 gpm Encapsulated Motor Magnetic Drive Pump

Submersible Use Only

The Little Giant PE-1.5-MDI-SC series features leakproof, seal-less magnetic drives and are designed for submersible use only. Volute, magnet housing and impeller are glass-filled polypropylene for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.

Features:

• 1/35 hp encapsulated motor
• Glass-filled polypropylene magnet housing
• Glass-filled polypropylene volute
• 1.1 specific gravity
• Nitrile O-ring
• Ceramic thrust washers and shaft
• Polyester motor case
• Stainless steel screws
• Polyethylene intake screen
• Thermally protected, epoxy encapsulated motor
• 6' power cord with 3-prong plug
• Specific gravity to 1.1
• Fluid temperature to 77°F
• C-cCSAus listed

Applications:

• Circulation of moderately corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other moderately corrosive chemicals and solutions that are compatible with the pump's material of construction

Construction:

• Volute - Glass-filled polypropylene
• Magnet Housing - Glass-filled polypropylene
• Impeller- Glass-filled polypropylene
• Shaft - Ceramic
• Thrust Washers - Ceramic
• O-Ring - Nitrile
• Motor Housing - Polyester/Polyethylene/
• Epoxy/PVC

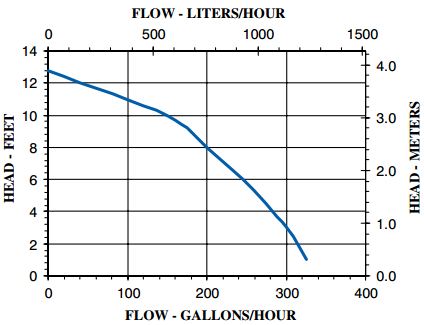

Performance:
