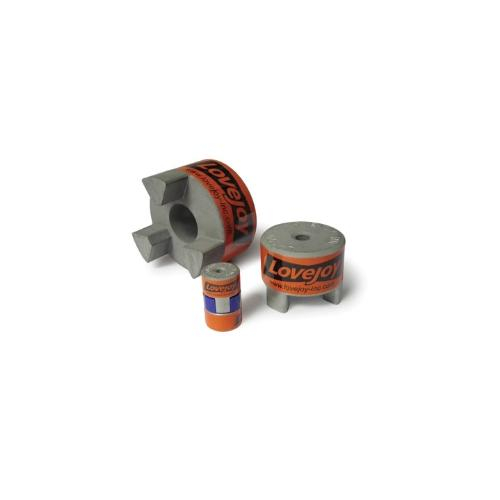

Lovejoy 68514424771 L070 Coupling Hub without Keyway, 5/8", (Pack of 11 pcs)

Bore Size: 5/8"
  • Brand Lovejoy
  • Part # 68514424771
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:
Package Quantity
Pack of 11 pcs

Options and Related Products

Bore Size:
Bore Size: 5/8"

Lovejoy, 68514424771, L070 Coupling Hub without Keyway, 5/8", L Type, Imperial

Features:

  • Fail-safe - will still perform if elastomer fails
  • No metal to metal contact
  • Resistant to oil, dirt, sand, moisture and grease

The L Type coupling consists of two standard L Type hubs. Unless stated otherwise, hub torque and horsepower ratings assume a SOX(NBR) rubber spider is being used. Nitrile Butadiene (Buna N) Rubber is a flexible elastomer material that is oil resistant, resembles natural rubber in resilience and elasticity and operates effectively in temperature range of -40° to 212° F (-40° to 100° C). Good resistance to oil. Standard elastomer. (Also applies to SXB Cushions.) Jaw coupling hubs are standard with one set screw, for two set screws see RRS & RRC sections.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Hub Style1
Coupling TypeJaw
MaterialSintered Iron
ColorMetallic
# of Jaws2
Elastomeric MemberSOX (NBR) Rubber
Weight0.22 lb
Weight (Complete Coupling w/ Min. Bores)0.40 lb
Weight (Complete Coupling w/ Max. Bores)0.60 lb
Dimensional Data
Bore Size5/8 in
Coupling SizeL070
Keyway Size (W x D)No Keyway
Length thru Bore0.750 in (19.05 mm)
Overall Length1.980 in (50.29 mm)
Outside Diameter1.36 in (34.54 mm)
Min. Bore (Dimensions ID1/ID2)0.250 in (6.00 mm)
Max. Bore (Dimensions ID1/ID2)0.750 in (19.00 mm)
Hub Length1.230 in (31.24 mm)
Dimension G0.480 in (12.19 mm)
Dimension SL0.380 in (9.65 mm)
Cubic inches2.27501 in3
Performance Data
Nominal Torque43.20 in-lb (4.88 N-m)
Max. Speed14000.00 rpm
Rated HP at 100 rpm0.07 hp
Rated HP at 1200 rpm0.84 hp
Rated HP at 1800 rpm1.23 hp
Rated HP at 3600 rpm2.52 hp
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Hub Style1
Coupling TypeJaw
MaterialSintered Iron
ColorMetallic
# of Jaws2
Elastomeric MemberSOX (NBR) Rubber
Weight0.22 lb
Weight (Complete Coupling w/ Min. Bores)0.40 lb
Weight (Complete Coupling w/ Max. Bores)0.60 lb
Dimensional Data
Bore Size5/8 in
Coupling SizeL070
Keyway Size (W x D)No Keyway
Length thru Bore0.750 in (19.05 mm)
Overall Length1.980 in (50.29 mm)
Outside Diameter1.36 in (34.54 mm)
Min. Bore (Dimensions ID1/ID2)0.250 in (6.00 mm)
Max. Bore (Dimensions ID1/ID2)0.750 in (19.00 mm)
Hub Length1.230 in (31.24 mm)
Dimension G0.480 in (12.19 mm)
Dimension SL0.380 in (9.65 mm)
Cubic inches2.27501 in3
Performance Data
Nominal Torque43.20 in-lb (4.88 N-m)
Max. Speed14000.00 rpm
Rated HP at 100 rpm0.07 hp
Rated HP at 1200 rpm0.84 hp
Rated HP at 1800 rpm1.23 hp
Rated HP at 3600 rpm2.52 hp
Note

Note: Please read description carefully. Do not base your order on the picture presented.
