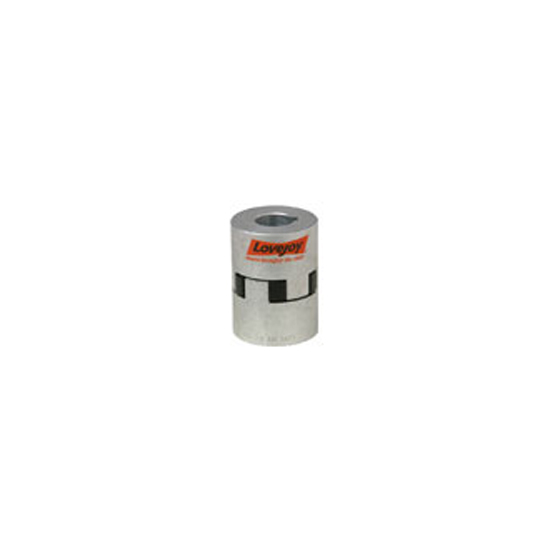

Lovejoy, 68514426094, AL110 1-1/16" AL-Type Hub with Keyway - Inch (Imperial) Bores

Features:

Spider Performance:

Nitrile Butadiene (Buna N) Rubber is a flexible elastomer material that is oil resistant, resembles natural rubber in resilience and elasticity and operates effectively in temperature range of -40° to 212° F (-40° to 100° C). Good resistance to oil. Standard elastomer. (Also applies to SXB Cushions.)

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details


Hub Style	1
Coupling Type	Jaw
Material	Aluminum
Color	Silver
# of Jaws	3
Elastomeric Member	SOX (NBR) Rubber
Weight	1.15 lb
Weight - Solid	2.10 lb
Weight (Complete Coupling w/ Max. Bores)	2.70 lb
Dimensional Data
Bore Size	1-1/16 in
Coupling Size	AL110
Thread (Dimension T)	5/16-18"
Keyway Size (W x D)	1/4 x 1/8 in
Length thru Bore	1.690 in (42.93 mm)
Overall Length	4.25 in (107.95 mm)
Min. Bore (Dimensions ID1/ID2)	0.625 in (16.00 mm)
Max. Bore (Dimensions ID1/ID2)	1.625 in (41 mm)
Hub Length	2.56 in (65.02 mm)
Dimension G	0.870 in (22.10 mm)
Dimension HD	3.31 in (84.07 mm)
Dimension SL	0.750 in (19.05 mm)
Cubic inches	28.04762 in3
Performance Data
Nominal Torque	792.00 in-lb
Max. Speed	5000 rpm
Moment of Inertia (Solid) WR2	3.531 lb-in2
Rated HP at 100 rpm	1.26 hp
Rated HP at 1200 rpm	15.12 hp
Rated HP at 1800 rpm	23.00 hp
Rated HP at 3600 rpm	45.36 hp

Notes
