Lovejoy 68514459888 11S S Type Flange with Keyway - Metric Bore

Keyway Size: 12 x 3.3 mm, Bore Size: 42 mm, Coupling Size: 11
  • Brand Lovejoy
  • Part # 68514459888
  • Model # 11S
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Keyway Size:
Keyway Size: 12 x 3.3 mm
Bore Size:
Bore Size: 42 mm
Coupling Size:
Coupling Size: 11

Lovejoy, 68514459888, 11S S Type Flange with Keyway - Metric Bore, 42 mm, 12 x 3.3 mm

Features:

  • S Flange are made of high strength cast iron and are bored-to- size for a slip fit on standard shafts.

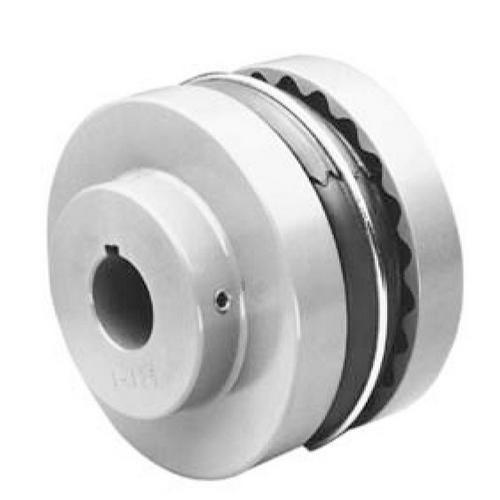

  • The S Type coupling consists of two Flange and one sleeve.
  • All standard finished bore keyway Flange have 2 set screws at 90 Deg.


See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Coupling Size11S
TypeCoupling Flange
MaterialCast Iron
ColorGray
Bore TypeFinished Bore
Coupling TypeS-Flex
Weight14.85 lb
Bore Size42 mm

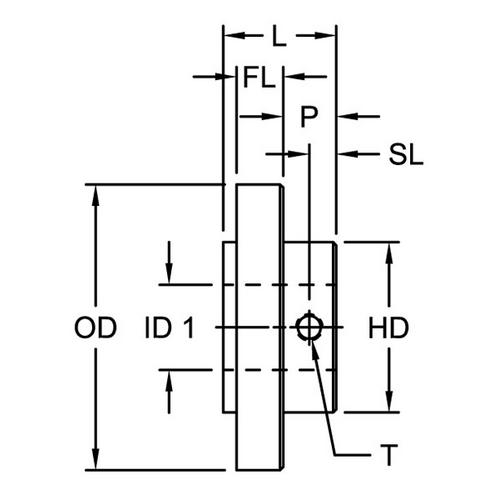

Thread (Dimension T)1/2-13
Keyway Size (W x D)12 x 3.3 mm
Outside Diameter9.625 in (244.48 mm)
Max. Bore3.375 in
Dimension FL1.500 in (38.10 mm)
Dimension HD5.250 in (133.35 mm)
Dimension L3.440 in (87.38 mm)
Dimension P1.130 in (28.70 mm)
Dimension SL0.560 in (14.22 mm)
Nominal Torque (with EPDM Sleeve)4530 in x lb
Max. Speed3600.00 rpm
Torsional Stiffness17300.00 in x lb/rad
Rated HP at 100 rpm7.20 hp
Rated HP at 1,200 rpm86.00 hp
Rated HP at 1,800 rpm129.00 hp
Rated HP at 3,600 rpm259.00 hp
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Coupling Size11S
TypeCoupling Flange
MaterialCast Iron
ColorGray
Bore TypeFinished Bore
Coupling TypeS-Flex
Weight14.85 lb
Bore Size42 mm
Thread (Dimension T)1/2-13
Keyway Size (W x D)12 x 3.3 mm
Outside Diameter9.625 in (244.48 mm)
Max. Bore3.375 in
Dimension FL1.500 in (38.10 mm)
Dimension HD5.250 in (133.35 mm)
Dimension L3.440 in (87.38 mm)
Dimension P1.130 in (28.70 mm)
Dimension SL0.560 in (14.22 mm)
Nominal Torque (with EPDM Sleeve)4530 in x lb
Max. Speed3600.00 rpm
Torsional Stiffness17300.00 in x lb/rad
Rated HP at 100 rpm7.20 hp
Rated HP at 1,200 rpm86.00 hp
Rated HP at 1,800 rpm129.00 hp
Rated HP at 3,600 rpm259.00 hp
Note

Note: Please read description carefully. Do not base your order on the picture presented.
