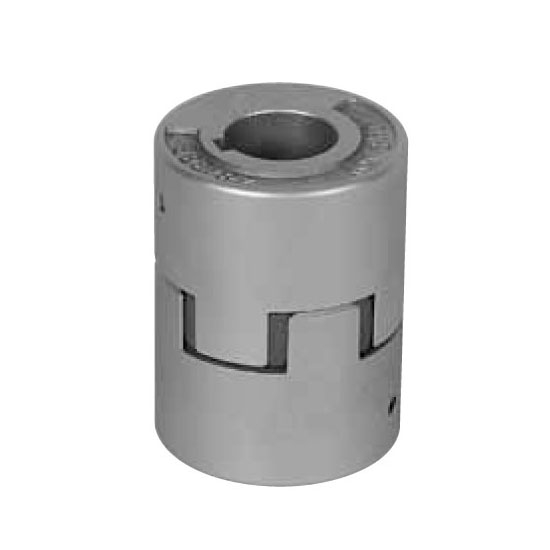

A complete CJ Series coupling is comprised of two standard CJ hubs and one CJ spider.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Hub Style	B
Type	Curved Jaw Couplings
Material	Powder Metal
Weight	3.41 lb
Style	Bored
Color	Metallic
Bore Type	Special Spline Bore
Coupling Size	38/45
Set Screw Size Coupling Size (Dimension T)	1/2-13
Length thru Bore (Dimensions LTB1/LTB2)	1.770 in (44.96 mm)
Outside Diameter	3.150 in
Overall Coupling Length	4.490 in (114.05 mm)
Spline Size	14T Spline 12/24 DP
Min. Bore (Dimensions ID1/ID2)	1.380 in
Max. Bore (Dimensions ID1/ID2)	1.75 in
Dimension HD	3.15 in
Distance between Spider and Hub Face (Dimension CL)	14.06672 in3
Normal Temperature Range	-40 to 212 °F
Max. Temperature Range	-50 to 248 °F
Nominal Torque	1680 in-lb (190 N-m)
Max Torque	3360 in-lb (380.00 N-m)
Max. Speed	7100 rpm

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Hub Style	B
Type	Curved Jaw Couplings
Material	Powder Metal
Weight	3.41 lb
Style	Bored
Color	Metallic
Bore Type	Special Spline Bore
Coupling Size	38/45
Set Screw Size Coupling Size (Dimension T)	1/2-13
Length thru Bore (Dimensions LTB1/LTB2)	1.770 in (44.96 mm)
Outside Diameter	3.150 in
Overall Coupling Length	4.490 in (114.05 mm)
Spline Size	14T Spline 12/24 DP
Min. Bore (Dimensions ID1/ID2)	1.380 in
Max. Bore (Dimensions ID1/ID2)	1.75 in
Dimension HD	3.15 in
Distance between Spider and Hub Face (Dimension CL)	14.06672 in3
Normal Temperature Range	-40 to 212 °F
Max. Temperature Range	-50 to 248 °F
Nominal Torque	1680 in-lb (190 N-m)
Max Torque	3360 in-lb (380.00 N-m)
Max. Speed	7100 rpm

Note: Please read description carefully. Do not base your order on the picture presented.
