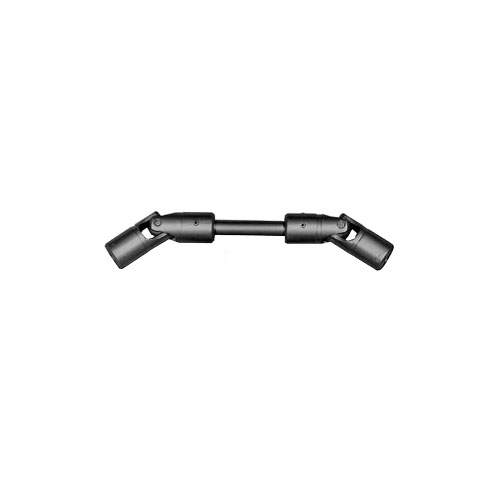

Lovejoy, 68514476322, DD Type DDX14B Universal Bored Joint w/ Double Joint Arrangement w/o Keyway

Features:

Designed with two Lovejoy D Type universal joints and a center connecting shaft
This configuration compensates for both parallel misalignment and shaft separation
Boot retaining grooves are standard. (Boots are available for purchase separately.)
Lubrication is required for optimal wear – boots and lubricant extend universal joint life

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
Bore A & B	1-1/4 & 1-1/2 in
Type	Universal Joints - DD Type
Material	Steel
Style	Bored
Weight	53.60 lb
Color	Metallic
Bore Type	Finished Bore
Connection Type A x B	1 1/4 x 1 1/2 in
Dimensional Data
Size	DD14B
Set Screw Size	3/8-16
Keyway A & B (W x D)	3/8 x 3/16 & 1/4 x 1/8 in
Outside Diameter	3.000 in
Overall Length	23.56 in
Bore Depth (Dimension C)	2.750 in
Max. Bore (Dimensions ID1/ID2)	2.00 in 50 mm
Main Pin Height (Dimension E)	4.53 in
Dimension F (Standard)	9.060 in 230.12 mm
Dimension F (Minimum)	6.310 in 160.27 mm
Cubic inches	163.08000 in3
Performance Data
Operating Temperature Range	-20 to 212 °F
Static Breaking Torque	65400.00 in-lb
Max. Speed	1750.00 rpm
Static Breaking Torque	65400.00 in-lb
Max. Angle Offset	25.00 °

General
Bore A & B	1-1/4 & 1-1/2 in
Type	Universal Joints - DD Type
Material	Steel
Style	Bored
Weight	53.60 lb
Color	Metallic
Bore Type	Finished Bore
Connection Type A x B	1 1/4 x 1 1/2 in
Dimensional Data
Size	DD14B
Set Screw Size	3/8-16
Keyway A & B (W x D)	3/8 x 3/16 & 1/4 x 1/8 in
Outside Diameter	3.000 in
Overall Length	23.56 in
Bore Depth (Dimension C)	2.750 in
Max. Bore (Dimensions ID1/ID2)	2.00 in 50 mm
Main Pin Height (Dimension E)	4.53 in
Dimension F (Standard)	9.060 in 230.12 mm
Dimension F (Minimum)	6.310 in 160.27 mm
Cubic inches	163.08000 in3
Performance Data
Operating Temperature Range	-20 to 212 °F
Static Breaking Torque	65400.00 in-lb
Max. Speed	1750.00 rpm
Static Breaking Torque	65400.00 in-lb
Max. Angle Offset	25.00 °
