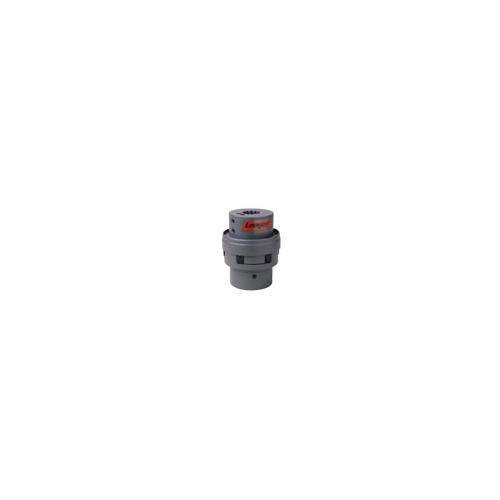

Lovejoy 68514476472 C276 Coupling Hub without Keyway, C Type

Coupling Size: C276
  • Brand Lovejoy
  • Part # 68514476472
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Coupling Size:
Coupling Size: C276

Features:

  • Greater torque and bore capacity than the L-Line series jaw coupling
  • Elastomeric cushions are radially removable
  • Cushions in SXB rubber and Hytrel

A complete C Type coupling is comprised of two standard C Type hubs, one cushion set, and one collar with hardware.Nitrile Butadiene (Buna N) Rubber is a flexible elastomer material that is oil resistant, resembles natural rubber in resilience and elasticity and operates effectively in temperature range of -40° to 212° F (-40° to 100° C). Good resistance to oil. Standard elastomer. (Also applies to SXB Cushions.) Jaw coupling hubs are standard with one set screw, for two set screws see RRS & RRC sections.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Hub Style3
Coupling TypeJaw
MaterialCast Iron
ColorGray/Metallic
# of Jaws3
Elastomeric MemberSOX (NBR) Rubber
Weight16.50 lb
Weight (Complete Coupling w/ Max. Bores)47.00 lb
Weight (Complete Coupling w/ Min. Bores)36.00 lb
Bore Size2 5/8 in
CouplingC276
Keyway Size (W x D)No Keyway
Length thru Bore3.120 in (79.25 mm)
Outside Diameter6.180 in (156.97 mm)
Min. Bore (Dimensions ID1/ID2)0.875 in (22.00 mm)
Max. Bore (Dimensions ID1/ID2)2.875 in (73 mm)
Overall Length of Hub7.870 in (199.90 mm)
Dimension CD6.530 in (165.86 mm)
Dimension CL0.120 in (3.05 mm)
Dimension G1.630 in (41.40 mm)
Dimension HD5.00 in (127.00 mm)
Dimension SL1.560 in (39.62 mm)
Cubic inches300.57419 in3
Nominal Torque4716 in-lb
Max. Speed4800.00 rpm
Moment of Inertia WR2188.000 lb-in2
Rated HP at 100 rpm7.5 hp
Rated HP at 1,200 rpm90 hp
Rated HP at 1,800 rpm135 hp
Rated HP at 3,600 rpm270 hp
Product Details
Hub Style3
Coupling TypeJaw
MaterialCast Iron
ColorGray/Metallic
# of Jaws3
Elastomeric MemberSOX (NBR) Rubber
Weight16.50 lb
Weight (Complete Coupling w/ Max. Bores)47.00 lb
Weight (Complete Coupling w/ Min. Bores)36.00 lb
Bore Size2 5/8 in
CouplingC276
Keyway Size (W x D)No Keyway
Length thru Bore3.120 in (79.25 mm)
Outside Diameter6.180 in (156.97 mm)
Min. Bore (Dimensions ID1/ID2)0.875 in (22.00 mm)
Max. Bore (Dimensions ID1/ID2)2.875 in (73 mm)
Overall Length of Hub7.870 in (199.90 mm)
Dimension CD6.530 in (165.86 mm)
Dimension CL0.120 in (3.05 mm)
Dimension G1.630 in (41.40 mm)
Dimension HD5.00 in (127.00 mm)
Dimension SL1.560 in (39.62 mm)
Cubic inches300.57419 in3
Nominal Torque4716 in-lb
Max. Speed4800.00 rpm
Moment of Inertia WR2188.000 lb-in2
Rated HP at 100 rpm7.5 hp
Rated HP at 1,200 rpm90 hp
Rated HP at 1,800 rpm135 hp
Rated HP at 3,600 rpm270 hp
Note

Note: Please read description carefully. Do not base your order on the picture presented.
