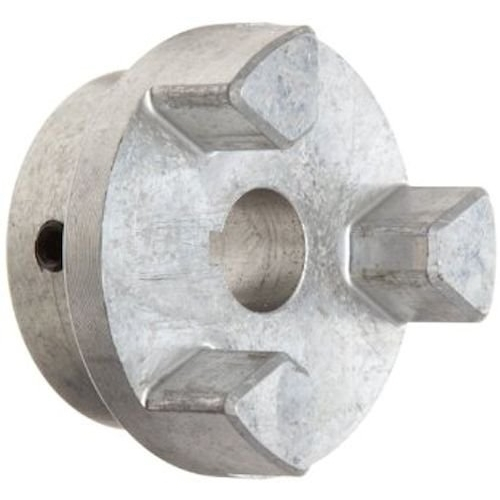

Lovejoy 68514476546 - AL Type AL095 Hub with Keyway

info@HeavyDutyDepot.com

+1 (838) 222-2023
+1 (718) 504-5719 (Intl.)

Options and Related Products

Features:

Interchangeable with all hub sizes standard for the L-Line and AL-Line products
Finished bores passivated for additional rust protection
The AL Type coupling consists of two standard AL Type hubs.
Unless stated otherwise, hub torque and horsepower ratings assume a SOX(NBR) rubber spider is being used.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
Hub Style	1
Coupling Type	Jaw
Material	Aluminum
Color	Silver
# of Jaws	3
Elastomeric Member	SOX (NBR) Rubber
Weight	0.25 lb
Weight - Solid	0.60 lb
Weight (Complete Coupling w/ Max. Bores)	0.80 lb
Dimensional Data
Bore Size	28.00 mm
Coupling Size	AL095
Keyway Size (W x D)	6 x 3.3
Length thru Bore	1 in 25.4 mm
Overall Length	2.500 in 63.50 mm
Min. Bore (Dimensions ID1/ID2)	0.500 in 13.00 mm
Max. Bore (Dimensions ID1/ID2)	1.125 in 29.00 mm
Hub Length	1.500 in 38.10 mm
Dimension G	0.5 in 12.7 mm
Outside Diameter	2.120 in 53.85 mm
Dimension SL	0.440 in 11.18 mm
Cubic inches	6.74160 in3
Performance Data
Nominal Torque	194.00 in-lb 21.92 N-m
Max. Speed	9000.00 rpm
Moment of Inertia (Solid) WR²	0.336 lb-in2
Rated HP at 100 rpm	0.31 hp
Rated HP at 1,200 rpm	3.72 hp
Rated HP at 1,800 rpm	5.50 hp
Rated HP at 3,600 rpm	11.16 hp

General
Hub Style	1
Coupling Type	Jaw
Material	Aluminum
Color	Silver
# of Jaws	3
Elastomeric Member	SOX (NBR) Rubber
Weight	0.25 lb
Weight - Solid	0.60 lb
Weight (Complete Coupling w/ Max. Bores)	0.80 lb
Dimensional Data
Bore Size	28.00 mm
Coupling Size	AL095
Keyway Size (W x D)	6 x 3.3
Length thru Bore	1 in 25.4 mm
Overall Length	2.500 in 63.50 mm
Min. Bore (Dimensions ID1/ID2)	0.500 in 13.00 mm
Max. Bore (Dimensions ID1/ID2)	1.125 in 29.00 mm
Hub Length	1.500 in 38.10 mm
Dimension G	0.5 in 12.7 mm
Outside Diameter	2.120 in 53.85 mm
Dimension SL	0.440 in 11.18 mm
Cubic inches	6.74160 in3
Performance Data
Nominal Torque	194.00 in-lb 21.92 N-m
Max. Speed	9000.00 rpm
Moment of Inertia (Solid) WR²	0.336 lb-in2
Rated HP at 100 rpm	0.31 hp
Rated HP at 1,200 rpm	3.72 hp
Rated HP at 1,800 rpm	5.50 hp
Rated HP at 3,600 rpm	11.16 hp

Note: Please read description carefully. Do not base your order on the picture presented.
