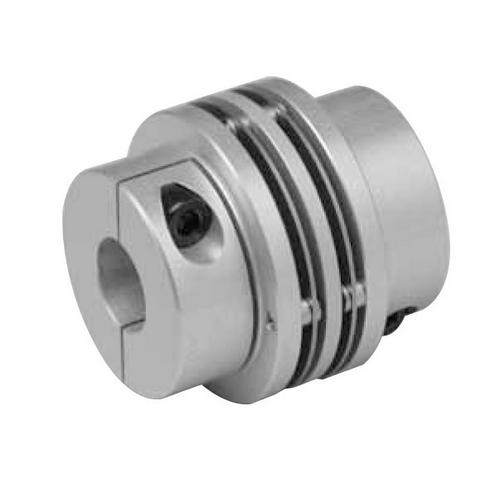

Lovejoy 68514477181 MDS Series Mini Disc Spacer Clamp Coupling

  • Brand Lovejoy
  • Part # 68514477181
  • Model # MDS Series
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Lovejoy, 68514477181, MDS Series Mini Disc Spacer Clamp Coupling, MDS63C

Features:

  • Zero backlash design
  • High torsional stiffness
  • Aluminum hubs with stainless steel discs
  • Moderate-high torque capabilities
  • Low Inertia

The MDS (mini disc spacer) Series coupling features a higher parallel misalignment capacity over standard MD Series at .006 inches. The MDS Series also has the highest parallel misalignment at .012 inches and angular misalignment at 2° of any of the mini disc couplings. Nominal torque, torsional stiffness, weight and moment of inertia are based on minimum bore size. Various hub diameters to accommodate different size bore diameters.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Coupling SizeMDS63C
Bore TypeFinished Bore
TypeMini Disc Coupling
Disc MaterialStainless Steel
Hub MaterialAluminum
StyleClamp Screw
ApplicationMotion Control
Weight0.51 oz
Weight (Complete Coupling w/ Min. Bores)8.11 oz
Bore A0.625 in
Bore B0.750 in
Overall Length2.283 in (58.00 mm)
Keyway SizeNo Keyway
Outside Diameter2.480 in (63.00 mm)
Min. Bore (Dimensions ID1/ID2)0.591 in (15.00 mm)
Max. Bore (Dimensions ID1/ID2)0.984 in (25.00 mm)
Length thru Bore0.878 in (22.30 mm)
Clamp Screw SizeM6
Dimension HD1.772 in (45.00 mm)
Cubic inches14.04136 in3
Max. Operating Temperature300.00 °F
Nominal Torque89.00 in-lb
Angular Misalignment2.00 °
Axial Misalignment± 0.031 in
Parallel Misalignment0.012 in
Moment of Inertia0.3760 lb-in2
Torsional Stiffness22125.00 in-lb/rad
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Coupling SizeMDS63C
Bore TypeFinished Bore
TypeMini Disc Coupling
Disc MaterialStainless Steel
Hub MaterialAluminum
StyleClamp Screw
ApplicationMotion Control
Weight0.51 oz
Weight (Complete Coupling w/ Min. Bores)8.11 oz
Bore A0.625 in
Bore B0.750 in
Overall Length2.283 in (58.00 mm)
Keyway SizeNo Keyway
Outside Diameter2.480 in (63.00 mm)
Min. Bore (Dimensions ID1/ID2)0.591 in (15.00 mm)
Max. Bore (Dimensions ID1/ID2)0.984 in (25.00 mm)
Length thru Bore0.878 in (22.30 mm)
Clamp Screw SizeM6
Dimension HD1.772 in (45.00 mm)
Cubic inches14.04136 in3
Max. Operating Temperature300.00 °F
Nominal Torque89.00 in-lb
Angular Misalignment2.00 °
Axial Misalignment± 0.031 in
Parallel Misalignment0.012 in
Moment of Inertia0.3760 lb-in2
Torsional Stiffness22125.00 in-lb/rad
Note

Note: Please read description carefully. Do not base your order on the picture presented.
