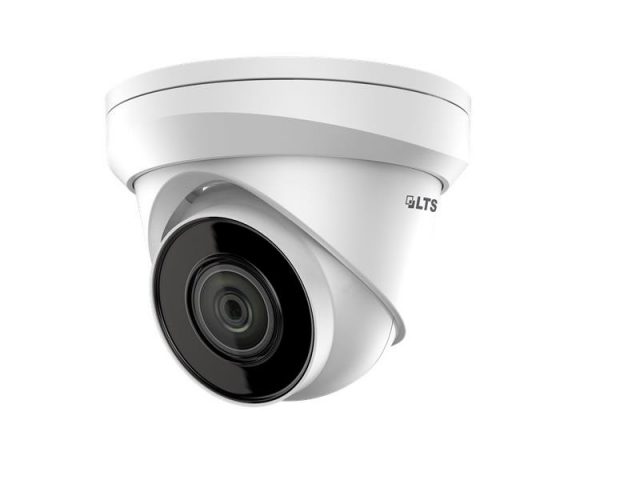

| Camera |
| Camera Series | Platinum Series |
| Camera Resolution | 4MP |
| Camera Technology | HD-TVI |
| Camera Housing | Turret |
| Image Sensor | 1/3" progressive scan CMOS |
| Min. Illumination | Color: 0.01 Lux at(F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° |
| Lens Mount | M12 |
| Focus | Fixed |
| Aperture | F2.0 |
| Illuminator |
| IR Wavelength | 850 nm |
| IR Range | Up to 98ft(30 m) |
| Video |
| Max. Resolution | 2560 x 1440 |
| Main Stream | - 50 Hz: 20 fps (2560 x 1440) 25 fps (2304 x 1296, 1920 x 1080, 1280 x 720)
- 60 Hz: 20 fps (2560 x 1440) 30 fps (2304 x 1296, 1920 x 1080, 1280 x 720)
|
| Sub-Stream | - 50 Hz: 25 fps (640 x 480, 640 x 360)
- 60 Hz: 30 fps (640 x 480, 640 x 360)
|
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Network |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, Schedule, Day, Night |
| Image Enhancement | BLC, 3D DNR |
| Interface |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Built-in Microphone | Yes |
| Hardware Reset | Yes |
| Event |
| Basic Event | Motion detection, video tampering alarm, exception |
| General |
| Linkage Method | Upload to FTP, notify surveillance center, send email also supports: upload to memory card, trigger recording, trigger capture |
| Camera Material | Metal |
| Camera Dimension | 110 mm x 85.3 mm (4.3" x 3.4") |
| Package Dimension | 150 mm x 150 mm x 141 mm (5.9" x 5.9" x 5.6") |
| Camera Weight | Approx. 320 g (0.7 lb.) |
| With Package Weight | Approx. 556 g (1.2 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
| Power Supply | 12 VDC ± 25% PoE: 802.3af, Class 3 |
| Power Interface | 5.5 mm coaxial power plug |
| Approval |
| EMC | - FCC SDoC (47 CFR Part 15, Subpart B)
- CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014)
- RCM (AS/NZS CISPR 32: 2015)
- IC VoC (ICES-003: Issue 6, 2016)
- KC (KN 32: 2015, KN 35: 2015)
|
| Safety | - UL (UL 60950-1)
- CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
- CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
- BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
|
| Environment | - CE-RoHS (2011/65/EU)
- WEEE (2012/19/EU)
- Reach (Regulation (EC) No 1907/2006)
|
| Protection | IP67 (IEC 60529-2013) |
