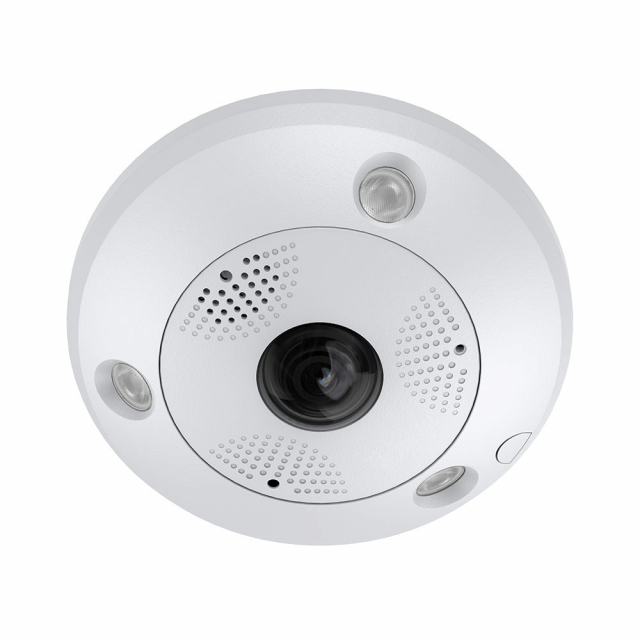

| Camera |
| Camera Series | Platinum Series |
| Camera Resolution | 12MP |
| Camera Technology | IP / Network |
| Camera Housing | Fisheye |
| Image Sensor | 1/1.7" Progressive Scan CMOS |
| Min. Illumination | - Color: 0.082 Lux at (F2.8, AGC ON),
- B/W: 0.016 Lux at (F2.8, AGC ON), 0 Lux with IR
|
| Shutter Speed | 1 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | Digital WDR |
| Lens |
| Focal Length | 2 mm |
| Aperture | F2.8 |
| FOV | Horizontal FOV 180° (wall mount), 360°(ceiling mount), 360°(table mount) |
| Lens Mount | M12 |
| IR | |
| IR Range | Up to 50ft(15 m) IR range, 3 LEDs. Each LED is independently controlled. |
| Wavelength | 850 nm |
| Compression Standard |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/ Main Profile /High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| SVC | H.265 and H.264 support |
| Smart Feature-set |
| Behavior Analysis | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Exception Detection | Audio exception detection |
| Region of Interest | 4 fixed regions for main stream and sub-stream |
| Image |
| Max. Resolution | 4000 x 3000 |
| Main Stream Max. Frame Rate | - 50Hz: 20fps (4000 x 3000), 25fps (3000 x 3000, 2560 x 2560)
- 60Hz: 20fps (4000 x 3000), 30fps (3000 x 3000, 2560 x 2560)
|
| Sub Stream Max. Frame Rate | - 50Hz: 20fps (720 x 720, 640 x 480)
- 60Hz: 20fps (720 x 720, 640 x 480)
|
| Image Enhancement | BLC, HLC, defog, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
| Picture Overlay | LOGO picture can be overlaid on video with 128 x 128 24bit bmp format |
| Live View Display |
| Mount Type | Support table, wall, and ceiling mounting |
| Decoding Mode | Support hardware decoding and software decoding |
| Display Mode | 18 display modes in total Software decoding:- Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder
- Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ
- Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder
Hardware decoding:- Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
- Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
- Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
|
| Audio |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Network |
| Network Storage | Support microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Security Measure | Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels, administrator, operator and user |
| Web Browser | IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+ |
| Interface |
| Communication Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port |
| Audio | 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm); 2 built-in microphone, 1 built-in speaker, mono sound |
| Alarm | 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Reset Button | Yes |
| General |
| Operating Conditions | -40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC±20%, PoE (802.3af, class 0), two-core terminal block |
| Power Consumption | 12 VDC, 0.9 A, max. 11 W PoE (802.3af, 36 to 57 V), 0.3 A to 0.2 A, max. 12 W |
| Protection Level (-V) | IP67, IK10 |
| Material | Metal |
| Dimensions | f 167.4 x 49.9 mm (f 6. 6"x 2.0") |
| Weight | Approx. 1347 g (2.97 lbs) |
