Mahr 4503004 Universal Measuring Instrument, Appl. Range 610-1015 mm

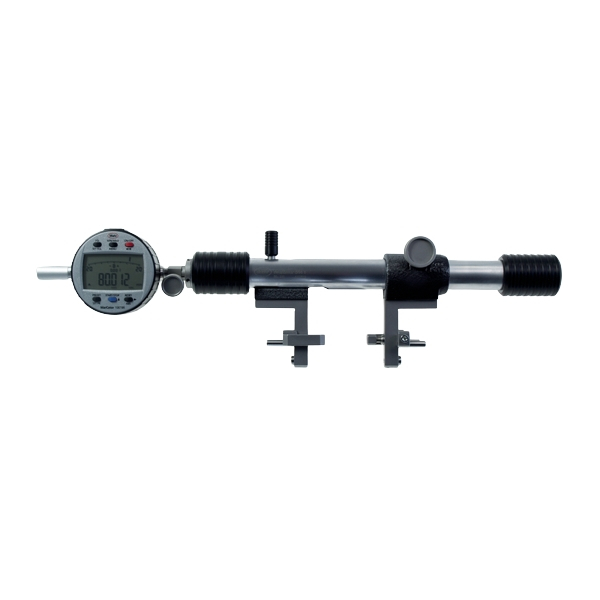

Mahr, 4503004, Multimar 844 T Universal Measuring Instrument, Application Range Inside 610 - 1015 mm

4503004 Includes Only:

• Measuring instrument
• Instruction manual
• Mounting and resting blocks
• Wooden case

Excludes indicator, without arms/attachments and anvils

Features:

• Interchangeable measuring arms, anvils and stop elements (optional accessories) for easy adaptation to individual measuring tasks
• The movable measuring arm carrier is mounted in a high-precision rotary stroke bearing for reduced play and friction
• The result is high measuring sensitivity, accuracy and free movement
• Stable support elements for repeatable measurements
• Constant measuring force with integrated measuring force spring
• Reversible measuring force direction for outer and inner measurement
• Highly stable, precision-ground, hard chrome-plated guide tube
• Lightweight construction with core made from carbon fiber-reinforced plastic (CRP) tube, for measuring range 610-1015 mm
• The stationary measuring arm holder can be moved along the guide tube and clamped for coarse adjustment

Applications:

• External and internal measurement of lengths, widths, diameters, distances
• External and internal threads
• Centering shoulders, narrow collars, recesses and grooves
• External and internal tapers
• External and internal gears
