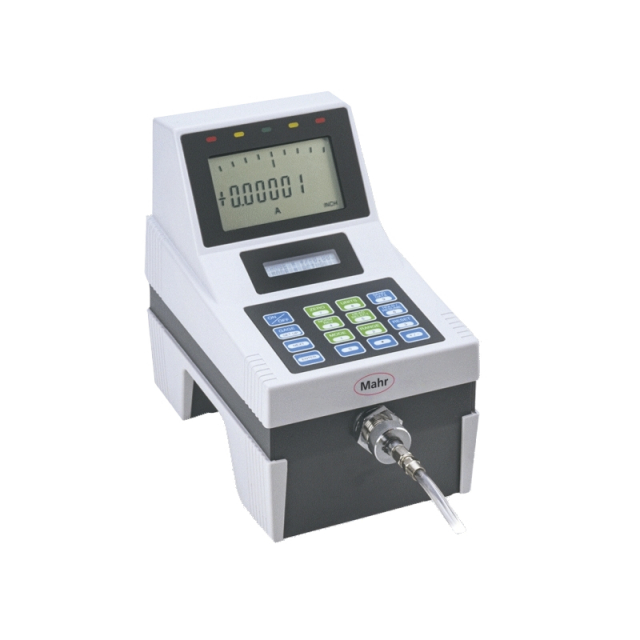

Mahr, 2004100KAL, Millimar, 832 Compact Length Measuring Instrument with Calibration

2004100KAL Includes Only:

Features:

Digital and analog display in one unit
Large, high contrast digital display of the exact deviation from zero
Analog display of measurement related information
With its fixed ratio and controlled compressed air supply, the digital Dimensionair is a sturdy, reliable system for manufacturing environments
Only one standard needed for zero offset; the instrument is precalibrated for the correct ratio
Measuring ranges and resolutions for almost all measuring applications
Suitable for dynamic measurement
RS-232 output for communication with a data storage device, computer or printer, for statistical process control
Master deviation – improved measurement with even more accurate automatic zero offset

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Display	Display mode A
Range of digital display mm	+/- 0.08, +/- 0.04, +/- 0.02
Range of digital display inch	+/- .003", +/- .0015", +/- .00075"
Graduation value um	4, 2, 1
Graduation value inch	150 u", 75 u", 38 u"
Tolerance display	5 LEDs
Compatibility	Federal
Dynamic functions	Max, Min, Max-Min
Statistical functions	Actual value, nominal value
Response time digital display	0.43 s
Error limit	+/- 1 digit
Data interface	RS-232C
Control outputs	5 TTL optocoupler outputs
Analog output	+/-5 VDC at maximum amplitude of the selected measuring range for signal +/-A, +/-B
Energy supply	110 V / 60 Hz, Power source
Operating temperature Min	5 °C
Operating temperature Max	35 °C
Product weight	5 kg

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Display	Display mode A
Range of digital display mm	+/- 0.08, +/- 0.04, +/- 0.02
Range of digital display inch	+/- .003", +/- .0015", +/- .00075"
Graduation value um	4, 2, 1
Graduation value inch	150 u", 75 u", 38 u"
Tolerance display	5 LEDs
Compatibility	Federal
Dynamic functions	Max, Min, Max-Min
Statistical functions	Actual value, nominal value
Response time digital display	0.43 s
Error limit	+/- 1 digit
Data interface	RS-232C
Control outputs	5 TTL optocoupler outputs
Analog output	+/-5 VDC at maximum amplitude of the selected measuring range for signal +/-A, +/-B
Energy supply	110 V / 60 Hz, Power source
Operating temperature Min	5 °C
Operating temperature Max	35 °C
Product weight	5 kg

Note: Please read description carefully. Do not base your order on the picture presented.
