Options and Related Products

Thread Size and Grip Range:: Thread Size and Grip Range: 10-32, 0.020" - 0.130"

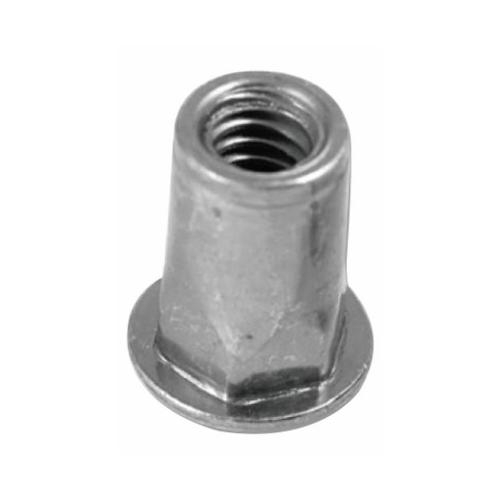

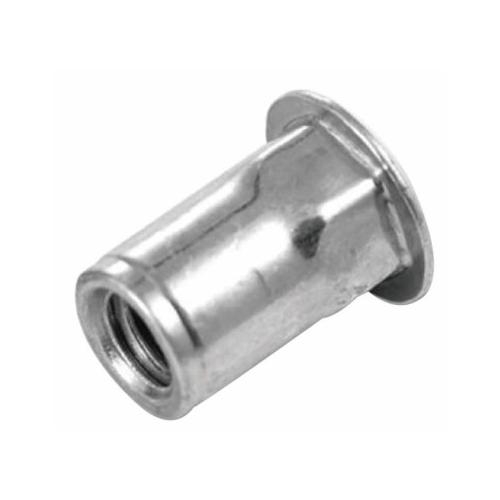

Marson, M22640, MHN Series Large Flange Half Hex Rivet Nut Insert, 10-32, 0.020" - 0.130"

Features:

Large flange half hex rivet nut provides exceptional torque-out strength and superior vibration resistance as the rivet nut external flat sides engage the hex cut opening

Unit of Measure	Pack of 500 pcs

Unit of Measure

Pack of 500 pcs

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Thread Size	#10-32 UNF-2B
Type	"H" Style Semi-Hex Body
Body Material	Steel
Body End	Open End
RoHS Compliant	Yes
Body Finish	Zinc Yellow Trivalent Chromate
Material Detail	Steel 1008/1010
Finish Detail	Zinc Yellow Trivalent Chromate Per ASTM-B-633 Type II, Class 2
Head Type	Low Profile
Minimum Grip	0.020 Inch (0.51mm)
Maximum Grip	0.130 Inch (3.30mm)
Head Height	0.027 Inch (0.69mm)
Head Diameter	0.390 Inch (9.91mm)
Item	Rivetnut Insert
Body Length	0.435 Inch (11.05mm)
Decimal Equivalent Diameter	0.280 Inch
Grip Range	0.020 - 0.130 Inch (0.51 - 3.30mm)
Minimum Hole Size	0.281 Inch (7.14mm)
Set Body Length	0.275 Inch (6.99mm)
Drill Size	9/32 Inch

Notes
