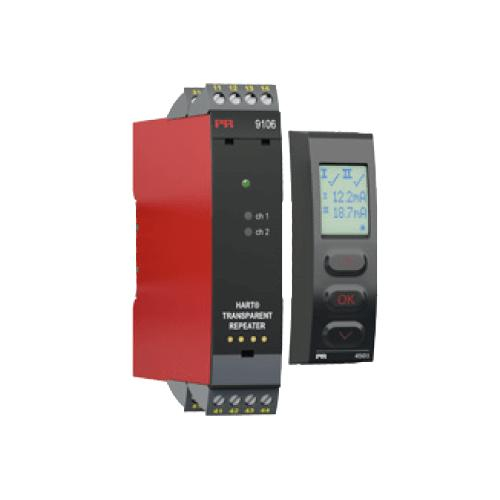

PR electronics 9106A2A-U9 HART Transparent Repeater, 25.3 V, Single

  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

PR Electronics, 9106A2A-U9, HART Transparent Repeater, 25.3 V, Single, cULus, ATEX, IECEx, FM, INMETRO, CCC, EAC-Ex

9106A is a 1-channel isolated 1:1 repeater. The device supplies 2-wire SMART transmitters and can also be used for 2-wire SMART current sources. HART and BRAIN protocols are supported and are transferred bi-directionally. 9106A can be mounted in the safe area or in zone 2 / Class I, Division 2, Groups A, B, C, D. For duplication/migration purposes, the outputs can be sent to two different DCS/PLC/HMI or any monitoring system. The detachable display 45xx and the green and red front LEDs indicate operation status for each channel. Monitoring of error events and cable breakage on input via the individual status relay and/or a collective electronic signal via the power rail. Suitable for the use in systems up to Performance Level "d" according to ISO-13849.

Features:

  • 24 VDC supply via power rail or connectors
  • Active and passive mA input
  • Active or passive output via the same two terminals
  • Splitter function - 1 in and 2 out
  • SIL2 / SIL3 Full Assessment and certified acc. to IEC 61508
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller

Technical Details

Reviews
Operating temperature-20°C to +60°C
Storage temperature-20°C to +85°C
Calibration temperature20...28°C
Relative humidity< 95% RH (non-cond.)
Protection degreeIP20
Installation inPollution degree 2 and meas. / overvoltage cat. II
Dimensions (HxWxD)109 x 23.5 x 104 mm
Dimensions (HxWxD) w/ 4501/451x109 x 23.5 x 116 / 131 mm
Weight approx.250 g
Weight incl. 4501 / 451x (approx.)265 g / 280 g
DIN rail typeDIN EN 60715/35 mm
Wire size0.13...2.08 mm2AWG 26...14 stranded wire
Screw terminal torque0.5 Nm
VibrationIEC 60068-2-6
2...13.2 Hz+/-1 mm
13.2...100 Hz+/-0.7 g
Supply voltage19.2...31.2 VDC
Fuse1.25 A SB / 250 VAC
Max. required power≤ 1.1 W / ≤ 1.9 W (1 ch. / 2 ch.)
Max. power dissipation, 1 / 2 ch.≤ 0.8 W / ≤ 1.2 W
Test /working: Input to any2.6 kVAC / 300 VAC reinforced isolation
Analog output to supply2.6 kVAC / 300 VAC reinforced isolation
Status relay to supply1.5 kVAC / 150 VAC reinforced isolation
Response time (0...90%, 100...10%)< 5 ms
ProgrammingPR 4500 communication interfaces
Signal dynamics, inputAnalog signal chain
Signal dynamics, outputAnalog signal chain
SMART bi-directional communication frequency range0.5...7.5 kHz
Signal / noise ratio> 60 dB
AccuracyBetter than 0.1% of sel. range
mA, absolute accuracy≤ +/-16 μA
mA, temperature coefficient≤ +/-1.6 μA / °C
Effect of supply voltage change on output (nom. 24 VDC)< +/-10 μA
EMC immunity influence< +/-0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst< +/-1% of span
Measurement range3.5...23 mA
2-wire transmitter supply 9106A1x>16 V / 20 mA
2-wire transmitter supply 9106A2x>15 V / 20 mA
Sensor error detection: Loop break 4...20 mA< 1 mA
Input voltage drop, supplied unit< 4 V at 23 mA
Input voltage drop, non-supplied unit< 6 V at 23 mA
Signal range3.5...23 mA
Load ( at current output)≤ 600 Ω
Load stability≤ 0.01% of span / 100 Ω
Current limit≤ 28 mA
Effect of external 2-wire supply voltage variation< 0.005% of span / V
Max. external 2-wire supply26 VDC
Relay functionN.C.
Programmable low setpoint0...29.9 mA
Programmable high setpoint0...29.9 mA
Hysteresis for setpoints0.1 mA
Max. voltage125 VAC / 110 VDC
Max. current0.5 AAC / 0.3 ADC
Max. voltage - hazardous installation32 VDC / 32 VAC
Max. current - hazardous installation1 ADC / 0.5 AAC
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Operating temperature-20°C to +60°C
Storage temperature-20°C to +85°C
Calibration temperature20...28°C
Relative humidity< 95% RH (non-cond.)
Protection degreeIP20
Installation inPollution degree 2 and meas. / overvoltage cat. II
Dimensions (HxWxD)109 x 23.5 x 104 mm
Dimensions (HxWxD) w/ 4501/451x109 x 23.5 x 116 / 131 mm
Weight approx.250 g
Weight incl. 4501 / 451x (approx.)265 g / 280 g
DIN rail typeDIN EN 60715/35 mm
Wire size0.13...2.08 mm2AWG 26...14 stranded wire
Screw terminal torque0.5 Nm
VibrationIEC 60068-2-6
2...13.2 Hz+/-1 mm
13.2...100 Hz+/-0.7 g
Supply voltage19.2...31.2 VDC
Fuse1.25 A SB / 250 VAC
Max. required power≤ 1.1 W / ≤ 1.9 W (1 ch. / 2 ch.)
Max. power dissipation, 1 / 2 ch.≤ 0.8 W / ≤ 1.2 W
Test /working: Input to any2.6 kVAC / 300 VAC reinforced isolation
Analog output to supply2.6 kVAC / 300 VAC reinforced isolation
Status relay to supply1.5 kVAC / 150 VAC reinforced isolation
Response time (0...90%, 100...10%)< 5 ms
ProgrammingPR 4500 communication interfaces
Signal dynamics, inputAnalog signal chain
Signal dynamics, outputAnalog signal chain
SMART bi-directional communication frequency range0.5...7.5 kHz
Signal / noise ratio> 60 dB
AccuracyBetter than 0.1% of sel. range
mA, absolute accuracy≤ +/-16 μA
mA, temperature coefficient≤ +/-1.6 μA / °C
Effect of supply voltage change on output (nom. 24 VDC)< +/-10 μA
EMC immunity influence< +/-0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst< +/-1% of span
Measurement range3.5...23 mA
2-wire transmitter supply 9106A1x>16 V / 20 mA
2-wire transmitter supply 9106A2x>15 V / 20 mA
Sensor error detection: Loop break 4...20 mA< 1 mA
Input voltage drop, supplied unit< 4 V at 23 mA
Input voltage drop, non-supplied unit< 6 V at 23 mA
Signal range3.5...23 mA
Load ( at current output)≤ 600 Ω
Load stability≤ 0.01% of span / 100 Ω
Current limit≤ 28 mA
Effect of external 2-wire supply voltage variation< 0.005% of span / V
Max. external 2-wire supply26 VDC
Relay functionN.C.
Programmable low setpoint0...29.9 mA
Programmable high setpoint0...29.9 mA
Hysteresis for setpoints0.1 mA
Max. voltage125 VAC / 110 VDC
Max. current0.5 AAC / 0.3 ADC
Max. voltage - hazardous installation32 VDC / 32 VAC
Max. current - hazardous installation1 ADC / 0.5 AAC
