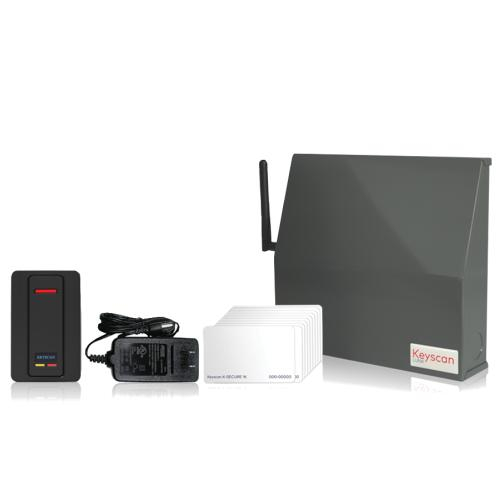

Rutherford Controls SDACSKT - Single Door Access Control Smart Kit: Heavy Duty Depot

info@HeavyDutyDepot.com

+1 (838) 222-2023
+1 (718) 504-5719 (Intl.)

Rutherford Controls (RCI)

Includes:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Doors supported	1
Reader ports	2 (in/Out)
Dimensions	W - 6.875 " (17.46 cm) x H - 7.625 " (19.37 cm) x D - 1.75 " (4.45 cm)
Weight	1.7 lbs (780g)
Housing	22 GA steel, gray powder coat
Environmental	Operating Temperature: 32° F to 120° F (0° C to 49° C) Humidity: 0 % to 90 % R.H, non-condensing
Power Inputs	+12V DC from supplied plug-in transformer or independent power supply
SDAC Current	170 mA to maximum 200 mA
Communication	802.11 Wireless b/g/n Adapter
PTC Resettable Fuses	Reader port 1 - Up to 500 mA; Reader port 2 - Up to 500 mA; Door output - Up to 500 mA; RTE port - Up to 300 mA
Software Requirements	LUNA
Applications	Indoor installations only

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Doors supported	1
Reader ports	2 (in/Out)
Dimensions	W - 6.875 " (17.46 cm) x H - 7.625 " (19.37 cm) x D - 1.75 " (4.45 cm)
Weight	1.7 lbs (780g)
Housing	22 GA steel, gray powder coat
Environmental	Operating Temperature: 32° F to 120° F (0° C to 49° C) Humidity: 0 % to 90 % R.H, non-condensing
Power Inputs	+12V DC from supplied plug-in transformer or independent power supply
SDAC Current	170 mA to maximum 200 mA
Communication	802.11 Wireless b/g/n Adapter
PTC Resettable Fuses	Reader port 1 - Up to 500 mA; Reader port 2 - Up to 500 mA; Door output - Up to 500 mA; RTE port - Up to 300 mA
Software Requirements	LUNA
Applications	Indoor installations only

Note: Please read description carefully. Do not base your order on the picture presented.
