STC RTS 1/2 N3/8 W - 1/2" Tube OD x 3/8" NPT Steel Run Tee: Heavy Duty Depot

info@HeavyDutyDepot.com

+1 (838) 222-2023
+1 (718) 504-5719 (Intl.)

Options and Related Products

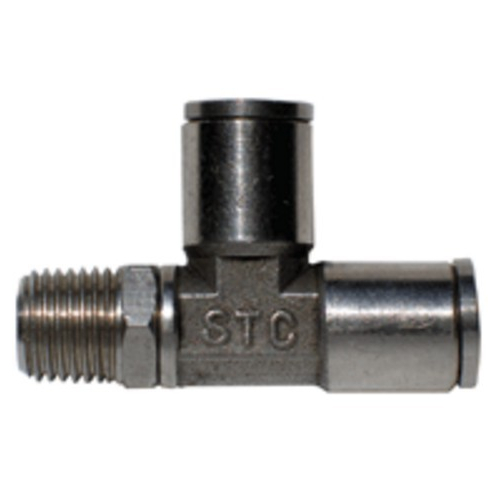

STC, RTS 1/2 N3/8 W, 1/2" Tube OD x 3/8" NPT 316 Stainless Steel Run Tee, Gripper Style

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Tube OD:	1/2"
Pipe Size:	3/8" NPT
Operating Pressure:	0 to 250 PSI (0 to 1650 kpa)
Vacuum:	0 to 30" Hg (0 to 760 mm Hg)
Operating Temperature:	5 to 230 °F (-15 to 110 °C)
Recommended Tubing Material:	Polyurethane, Nylon, Polyethylene, Polypropylene, and Hard metal tubing (tubing must be pre-grooved)
Metal Body:	T316 Stainless Steel
Plastic Body:	None
Release Button:	300 Series Stainless Steel
Grip Ring or Collet:	300 Series Stainless Steel
O-Ring:	VITON
Thread Sealant:	None
Service:	Air, Liquid

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Tube OD:	1/2"
Pipe Size:	3/8" NPT
Operating Pressure:	0 to 250 PSI (0 to 1650 kpa)
Vacuum:	0 to 30" Hg (0 to 760 mm Hg)
Operating Temperature:	5 to 230 °F (-15 to 110 °C)
Recommended Tubing Material:	Polyurethane, Nylon, Polyethylene, Polypropylene, and Hard metal tubing (tubing must be pre-grooved)
Metal Body:	T316 Stainless Steel
Plastic Body:	None
Release Button:	300 Series Stainless Steel
Grip Ring or Collet:	300 Series Stainless Steel
O-Ring:	VITON
Thread Sealant:	None
Service:	Air, Liquid

Note: Please read description carefully. Do not base your order on the picture presented.
