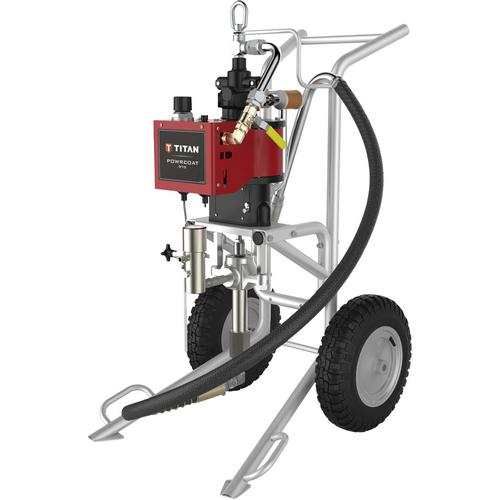

Titan Tool 0533975C PowrCoat 975 Air Powered Sprayer, Cart Mount, 7500 PSI

  • Brand Titan Tool
  • Part # 0533975C
  • Model # PowrCoat 975
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Titan Tool, 0533975C, PowrCoat 975 Air Powered Sprayer, Cart Mount, 7500 PSI

So tough they are virtually indestructible. Severe Service means twice the life with half the maintenance. The durability, reliability, and ease of operation that you need are built in to each unit. PowrCoat Sprayers have been used throughout the world, providing their owners with dependable, efficient operation.

Features:

  • Severe Service Fluid Section Features self-adjusting packings
  • Severe Service Piston Rod and Cylinder Titan exclusive hard-chrome plating is the hardest and slickest wear surface in the industry
  • High Capacity Outlet Filter Features 3/8” and 1/4” outlets and easy-on/easy-off filter access
  • Air Filter, Moisture Separator, Regulator and Lubricator Included on all PowrCoat models
  • Heavy-Duty Frame Features large 16” pneumatic tires, convenient lift handles, heavyduty crane hook and high capacity hose rack that holds up to 200 feet of 1/2” hose
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Air Motor Diameter9 in
Ratio75:1
Stroke Length4.0 in
Max. Operating Pressure (PSI)7500
Volume Flow - 60 CPM1.5 gal (5.7 l)/min
Max. Air Input Pressures (PSI)100
Max. Recommended Volume Requirements (CFM)133
Fluid Output Per Cycle (CC)95
Max. Recommended Output (GPM)2.1
Cycle Rate (Per Gallon/ Liter)39.6 / 10.5
Volume (Per Double Stroke)95.5 cc
Maximum Volume Flow - 60 CPM1.5 gal (5.7 l)/min
Inlet1" NPT(F)
Outlet1/2" NPT(F)
Hose Connection3/8" NPSM(M)
Air Inlet3/4" NPT(M)
Max. Sound Pressure Level104 dB
Max. Temperature140º F (60º C)
Weight135 lbs (61.2 kg)
Dimensions34.75 x 26.25 x 49" (88.3 x 66.7 x 124.5 cm)
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Air Motor Diameter9 in
Ratio75:1
Stroke Length4.0 in
Max. Operating Pressure (PSI)7500
Volume Flow - 60 CPM1.5 gal (5.7 l)/min
Max. Air Input Pressures (PSI)100
Max. Recommended Volume Requirements (CFM)133
Fluid Output Per Cycle (CC)95
Max. Recommended Output (GPM)2.1
Cycle Rate (Per Gallon/ Liter)39.6 / 10.5
Volume (Per Double Stroke)95.5 cc
Maximum Volume Flow - 60 CPM1.5 gal (5.7 l)/min
Inlet1" NPT(F)
Outlet1/2" NPT(F)
Hose Connection3/8" NPSM(M)
Air Inlet3/4" NPT(M)
Max. Sound Pressure Level104 dB
Max. Temperature140º F (60º C)
Weight135 lbs (61.2 kg)
Dimensions34.75 x 26.25 x 49" (88.3 x 66.7 x 124.5 cm)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
