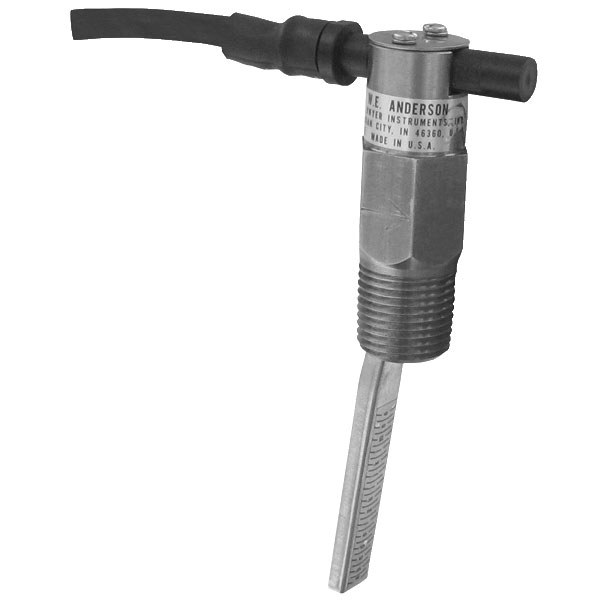

WE Anderson V10SS Series V10 Flotect Mini-Size Flow Switch

W.E. Anderson, V10SS, Series V10 Flotect Mini-Size Flow Switch, 303 SS, Normally Open or Closed

Low Cost, Leak Proof Body, Weatherproof

The SERIES V10 Flotect® Mini-Size Flow Switches is designed to provide inexpensive, reliable monitoring of the presence or absence of flow in a system.

Features

• Magnetically actuated switching design gives superior performance with rugged, hermetically sealed reed switch
• Simple field switch adjustment allows user to toggle between Normally Open (NO) or Normally Closed (NC) with no change in the electrical connection
• Switch housing is located outside the process media, allowing simple switch changeover or maintenance without interruption of process flow
• Full size, field trimmable stainless steel vane provided with removable template calibrated for brass or ductile iron reducing tees with forged steel straight tee/bushing combinations

Applications:

• Proving flow in boilers, hot water heaters, and chillers
• Protects pumps, motors and other equipment against low or no flow
• Automatically starts auxiliary pumps and engines

Approvals

• CE Approval
• CSA Approval-Industrial Control Equipment
• UL-Motor Controllers-Canada
• UL-Motor Controllers-US
