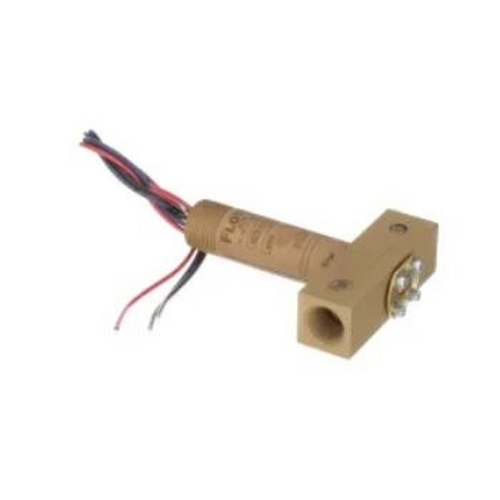

WE Anderson V6EPB-B-S-LF Series V6 Mini-Size Flow Switch

Switch Type: SPDT
  • Brand WE Anderson
  • Part # V6EPB-B-S-LF
  • Model # Series V6
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Switch Type:
Switch Type: SPDT

W.E. Anderson, V6EPB-B-S-LF, Series V6 Flotect Mini-Size Flow Switch, Brass Upper Housing, SPDT, Low Flow

Explosion-proof

Surprisingly compact, the Series V6 Flotect® Flow Switch is engineered to specifically monitor liquid, gas, or air flows. Operation is simple and dependable with no mechanical linkage as the flow switch is magnetically actuated. The lower body holds the flow vane and one magnet, which controls the switch actuating magnet in the separate upper housing. In most applications the switch is normally off with the pipeline flow forcing the vane against the vane spring. As the flow decreases the vane spring pushes back the vane, actuating the switch to signal an alarm or shutdown.

Product Applications

  • Protects pumps, motors and other equipment against low or no flow
  • Controls sequential operation of pumps
  • Automatically starts auxiliary pumps and engines
  • Stops liquid cooled engines, machines and processing when coolant flow is interrupted
  • Shuts down burner when air flow through heating coil fails
  • Controls dampers according to flow
  • Signals alarm when emergency shower in use

Features

  • Leak proof lower body machined from bar stock
  • Choice of models in a tee with calibrated vane or field adjustable trimmable vane
  • Weatherproof
  • Explosion-proof
  • Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
  • High pressure rating of 1000 psig
  • Low flow model offers field adjustable set point
  • Easy installation, simply insert the tee in the pipeline and complete electrical connections

Approvals

  • ATEX Approval
  • ATEX Certificate
  • ATEX QAN
  • CE Approval
  • CSA Approval-Industrial Control Equipment
  • IECEx Certificate
  • UL-Switches-US
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
ServiceGases or liquids compatible with wetted materials
Temperature Limits-4 to 220°F (-20 to 105°C) Standard, MT high temperature option 400°F (205°C) (MT not UL, CSA, ATEX, IECEx or KC) ATEX Compliant AT, IECEx IEC Option and KC (KC Option), Ambient Temperature -4 to 167°F (-20 to 75°C) Process Temperature: -4 to 220°F (-20 to 105°C)
Pressure LimitBrass lower body with no tee models 1000 psig (69 bar), 303 SS lower body with no tee models 2000 psig (138 bar). Brass tee models 250 psi (17.2 bar), iron tee models 1000 psi (69 bar), forged and stainless steel tee models 2000 psi (138 bar), low flow models 1450 psi (100 bar)
Enclosure RatingWeatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G. (Group A on stainless steel body models only). ATEX 0344 II 2 G Ex d IIC T6 Gb Process Temp≤75°C Alternate Temperature Class T5 Process Temp≤90°C, 115°C (T4). EC-type Certificate No.: KEMA 04ATEX2128. ATEX Standards: EN 60079-0: 2009; EN 60079-1: 2007. IECEx Certified: For Ex d IIC T6 Gb Process Temp≤75°C Alternate Temperature Class T5 Process Temp≤90°C, 115°C (T4). IECEx Certificate of Conformity: IECEx DEK 11.0039; IECEx Standards: IEC 60079-0: 2007; IEC 60079-1: 2007; Korean Certified (KC) for: Ex d IIC T6 Gb Process Temp≤75°C; KTL Certificate Number: 2012-2454-75
Electrical RatingUL models: 5A @125/250 VAC. CSA, ATEX and IECEx models: 5A @ 125/250 VAC (V~); 5A res., 3A ind. @ 30 VDC (V ). MV option: .1A @ 125 VAC (V~). MT option: 5A @125/250 VAC (V~). [MT option not UL, CSA, ATEX or IECEx]
Electrical ConnectionsUL models: 18 AWG, 18" (460 mm) long. ATEX/CSA /IECEx models: terminal block
Conduit Connections3/4" male NPT standard, 3/4" female NPT on junction box models
Process Connection1/2" male NPT on models without a tee
Mounting OrientationSwitch can be installed in any position but the actuation/deactuation flow rates in the charts are based on horizontal pipe runs and are nominal values
Options not ShownCustom calibration, bushings, PVC tee, reinforced vane, DPDT relays
Agency ApprovalsATEX, CE, CSA, IECEx, KTL, UL
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
ServiceGases or liquids compatible with wetted materials
Temperature Limits-4 to 220°F (-20 to 105°C) Standard, MT high temperature option 400°F (205°C) (MT not UL, CSA, ATEX, IECEx or KC) ATEX Compliant AT, IECEx IEC Option and KC (KC Option), Ambient Temperature -4 to 167°F (-20 to 75°C) Process Temperature: -4 to 220°F (-20 to 105°C)
Pressure LimitBrass lower body with no tee models 1000 psig (69 bar), 303 SS lower body with no tee models 2000 psig (138 bar). Brass tee models 250 psi (17.2 bar), iron tee models 1000 psi (69 bar), forged and stainless steel tee models 2000 psi (138 bar), low flow models 1450 psi (100 bar)
Enclosure RatingWeatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G. (Group A on stainless steel body models only). ATEX 0344 II 2 G Ex d IIC T6 Gb Process Temp≤75°C Alternate Temperature Class T5 Process Temp≤90°C, 115°C (T4). EC-type Certificate No.: KEMA 04ATEX2128. ATEX Standards: EN 60079-0: 2009; EN 60079-1: 2007. IECEx Certified: For Ex d IIC T6 Gb Process Temp≤75°C Alternate Temperature Class T5 Process Temp≤90°C, 115°C (T4). IECEx Certificate of Conformity: IECEx DEK 11.0039; IECEx Standards: IEC 60079-0: 2007; IEC 60079-1: 2007; Korean Certified (KC) for: Ex d IIC T6 Gb Process Temp≤75°C; KTL Certificate Number: 2012-2454-75
Electrical RatingUL models: 5A @125/250 VAC. CSA, ATEX and IECEx models: 5A @ 125/250 VAC (V~); 5A res., 3A ind. @ 30 VDC (V ). MV option: .1A @ 125 VAC (V~). MT option: 5A @125/250 VAC (V~). [MT option not UL, CSA, ATEX or IECEx]
Electrical ConnectionsUL models: 18 AWG, 18" (460 mm) long. ATEX/CSA /IECEx models: terminal block
Conduit Connections3/4" male NPT standard, 3/4" female NPT on junction box models
Process Connection1/2" male NPT on models without a tee
Mounting OrientationSwitch can be installed in any position but the actuation/deactuation flow rates in the charts are based on horizontal pipe runs and are nominal values
Options not ShownCustom calibration, bushings, PVC tee, reinforced vane, DPDT relays
Agency ApprovalsATEX, CE, CSA, IECEx, KTL, UL
