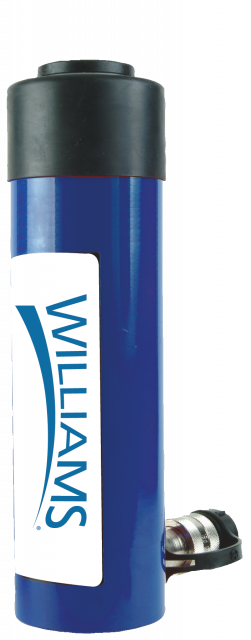

Williams JHW6C25T12 - 25T Single Acting Cylinders 12 Stroke 3/8: Heavy Duty Depot

GET $5 OFF

ON YOUR FIRST PURCHASE
Code: LOVEHEAVY

info@HeavyDutyDepot.com

+1 (838) 222-2023
+1 (718) 504-5719 (Intl.)

Options and Related Products

Size (T):: Size (T): 25
Oil Capacity (in3):: Oil Capacity (in3): 62.91

Features:

Internal plunger threads
Snap in grooved saddles
Rod wiper seals out dirt and contamination
Collar fixture threads
Two base mounting holes on most models
Most rugged, high torque capacity ratchet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions

A - 16.73 in
B - 28.97 in
C - 2.56 in
D - 3.35 in
E - 2.24 in
F - 1.97 in
G - 0.98 in
H - 3-5/16-12 in
L - 1.93 in
J - 1-1/2-16 in
K - 1.18 in
X - 2.31 in
Y - 1/2-13UNC in
Z - 0.75 in

Maximum working pressure

9730 psi

Max. Operating Force

25 t

USAble Oil Capacity

62.91 in3

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions

A - 16.73 in
B - 28.97 in
C - 2.56 in
D - 3.35 in
E - 2.24 in
F - 1.97 in
G - 0.98 in
H - 3-5/16-12 in
L - 1.93 in
J - 1-1/2-16 in
K - 1.18 in
X - 2.31 in
Y - 1/2-13UNC in
Z - 0.75 in

Maximum working pressure

9730 psi

Max. Operating Force

25 t

USAble Oil Capacity

62.91 in3

Note: Please read description carefully. Do not base your order on the picture presented.
