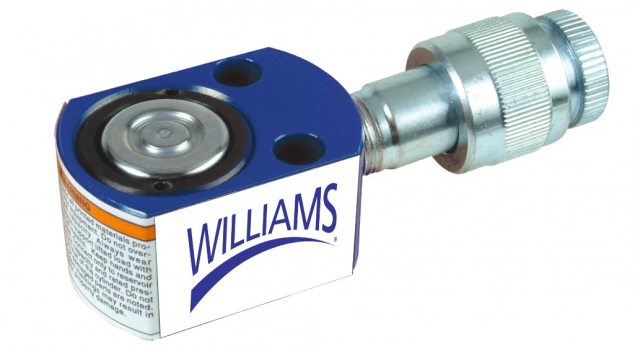

Williams JHW6CF10T05 - 10T Flat Body Cylinders 3/8: Heavy Duty Depot

GET $5 OFF

ON YOUR FIRST PURCHASE
Code: LOVEHEAVY

info@HeavyDutyDepot.com

+1 (838) 222-2023
+1 (718) 504-5719 (Intl.)

Options and Related Products

Size (T):: Size (T): 10
Stroke Size (in):: Stroke Size (in): 0.43 in

Features:

Made of high quality steel
Extremely low collapsed height for applications with minimal clearance at the lift point
Great for areas of low clearance
Maximum working pressure 1, psi / 7 bar
Flextensions are designed for use on hand and power tools (Impulse or Direct drive); Not for impact tool use
Maximum working torque values: 16 Ft. Lbs. /192 In. Lbs. /217 Nm
Other lengths and socket sizes available by special order.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions

A - 1.69 in
B - 2.12in
C - 1.73 in
D - 3.3x2.2 in
E - 1.5 in
G - 0.77 in
X - 1.44 in
Y - 0.28 in
L - 1.12 in
M - 1.32 in

Cylinder Capacity (tons)

10

Stroke (in)

0.43

Cylinder Effective Area Push (in)

2.36

Oil Capacity (in3)

1.01

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions

A - 1.69 in
B - 2.12in
C - 1.73 in
D - 3.3x2.2 in
E - 1.5 in
G - 0.77 in
X - 1.44 in
Y - 0.28 in
L - 1.12 in
M - 1.32 in

Cylinder Capacity (tons)

10

Stroke (in)

0.43

Cylinder Effective Area Push (in)

2.36

Oil Capacity (in3)

1.01

Note: Please read description carefully. Do not base your order on the picture presented.
