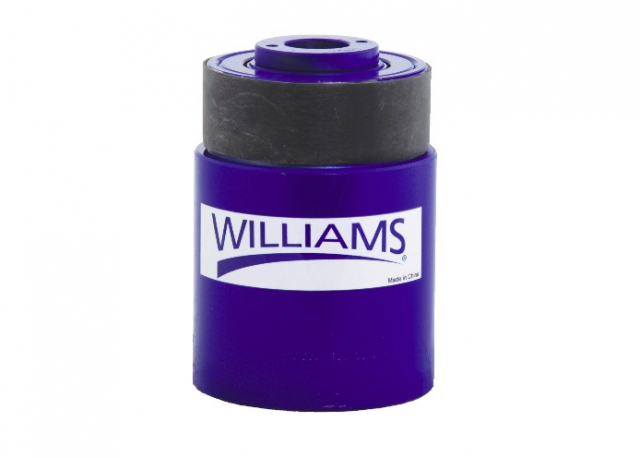

Williams JHW6CH100T03 - 100T Single Acting Cylinders 3 Stroke: Heavy Duty Depot

GET $5 OFF

ON YOUR FIRST PURCHASE
Code: LOVEHEAVY

info@HeavyDutyDepot.com

+1 (838) 222-2023
+1 (718) 504-5719 (Intl.)

Options and Related Products

Size (T):: Size (T): 100
Stroke Size (in):: Stroke Size (in): 3 in

Features:

Ideal for some pulling and pushing applications
Heavy duty compression spring
Dual wipers help prevent contamination
Collar thread protector
High flow coupler with dust cap
Easy-to-read window scale
Light weight
Automatic lock in CCW direction for removing screws
Accuracy: ± 6% of indicated value, CW, from 2% to 1% of full scale
Individually serialized with matching certificate of calibration traceable to N.I.S.T
Meets or exceeds ASME B17.3 - 21

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions

A - 10 in
B - 13 in
C - 3.11 in
D - 8.386 in
E - 4.92 in
G - 1.06 in
X - 7.01 in
Y - 5/8-11UNC in
L - 2.38 in
K - 0.98 in
Z - 0.75 in
J - 4-16UN in

Cylinder Capacity (tons)

100

Stroke (in)

3

Cylinder Effective Area Push (in)

22.13

Oil Capacity (in3)

66.31

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions

A - 10 in
B - 13 in
C - 3.11 in
D - 8.386 in
E - 4.92 in
G - 1.06 in
X - 7.01 in
Y - 5/8-11UNC in
L - 2.38 in
K - 0.98 in
Z - 0.75 in
J - 4-16UN in

Cylinder Capacity (tons)

100

Stroke (in)

3

Cylinder Effective Area Push (in)

22.13

Oil Capacity (in3)

66.31

Note: Please read description carefully. Do not base your order on the picture presented.
