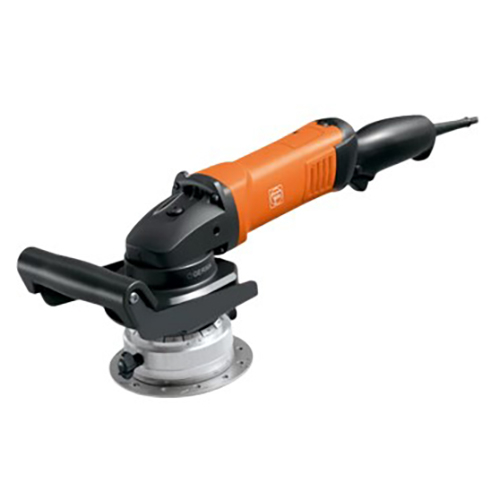

Fein Power Tools 72381961090 - KFH 17-15 RT Beveler for up to 5/8" / 15 mm: Heavy Duty Depot

info@HeavyDutyDepot.com

+1 (838) 222-2023
+1 (718) 504-5719 (Intl.)

Options and Related Products

Features:

Cutting output 30 - 80 percent higher and significantly reduced vibration with booster technology.
Spring technology: Cushioning of rotation force yields increased occupational safety through low-vibration work.
Fein ErgoGrip: Unique ergonomic concept with the two-handed operation for low-fatigue work - patent pending.
Extensive user protection due to soft start, restart protection, jam monitoring, and electronic overload protection.
Efficient quick cutter change system for minimal interruptions.
High removal rate and low effort.
AutoStop dead man's switch

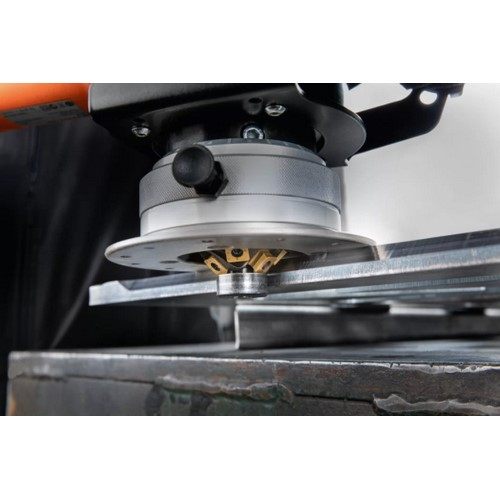

Beveler for universal use with booster and spring technology for optimal weld seam preparation.

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Power Consumption	1,560 W
No Load Speed	2,300 - 7,500 Rpm
Max. Chamfer Length At 45°	9/16 [15] In[Mm]
Max. Chamfer Height At 45°	7/16 [10.6] In[Mm]
Chamfer Angle	30° / 37.5° / 45° / 60°
Radius	5/64, 1/8, 5/32 [2, 3, 4] In[Mm]
Cutting Head Mounting	3X2 Kx Insert
Support Plate Dia.	5-3/8 [137] In[Mm]
Cable With Plug	13.1 [4] Ft[M]
Weight	14.11 [6.40] Lbs[Kg]
Sound Pressure Level LPA	90 Db
Measurement Uncertainty Of The Measured Value Kpa	3 Db
Sound Power Level LwA	101 Db
Measurement Uncertainty Of The Measured Value Kwa	3 Db
Peak Sound Value Lpcpeak	104 Db
Measurement Uncertainty Of The Measured Value Kpcpeak	3 Db
Vibration Value 1 αHv 3-Way	αH, 3,7 M/S2
Vibration Value 2 αHv 3-Way	αH, 4,3 M/S2
Measurement Uncertainty Of The Measured Value Kα	1,5 M/S2

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Power Consumption	1,560 W
No Load Speed	2,300 - 7,500 Rpm
Max. Chamfer Length At 45°	9/16 [15] In[Mm]
Max. Chamfer Height At 45°	7/16 [10.6] In[Mm]
Chamfer Angle	30° / 37.5° / 45° / 60°
Radius	5/64, 1/8, 5/32 [2, 3, 4] In[Mm]
Cutting Head Mounting	3X2 Kx Insert
Support Plate Dia.	5-3/8 [137] In[Mm]
Cable With Plug	13.1 [4] Ft[M]
Weight	14.11 [6.40] Lbs[Kg]
Sound Pressure Level LPA	90 Db
Measurement Uncertainty Of The Measured Value Kpa	3 Db
Sound Power Level LwA	101 Db
Measurement Uncertainty Of The Measured Value Kwa	3 Db
Peak Sound Value Lpcpeak	104 Db
Measurement Uncertainty Of The Measured Value Kpcpeak	3 Db
Vibration Value 1 αHv 3-Way	αH, 3,7 M/S2
Vibration Value 2 αHv 3-Way	αH, 4,3 M/S2
Measurement Uncertainty Of The Measured Value Kα	1,5 M/S2

Note: Please read description carefully. Do not base your order on the picture presented.
